Allen & Heath ME-500 Personal Monitor Mixer

Allen & Heath ME-500 Personal Monitor Mixer

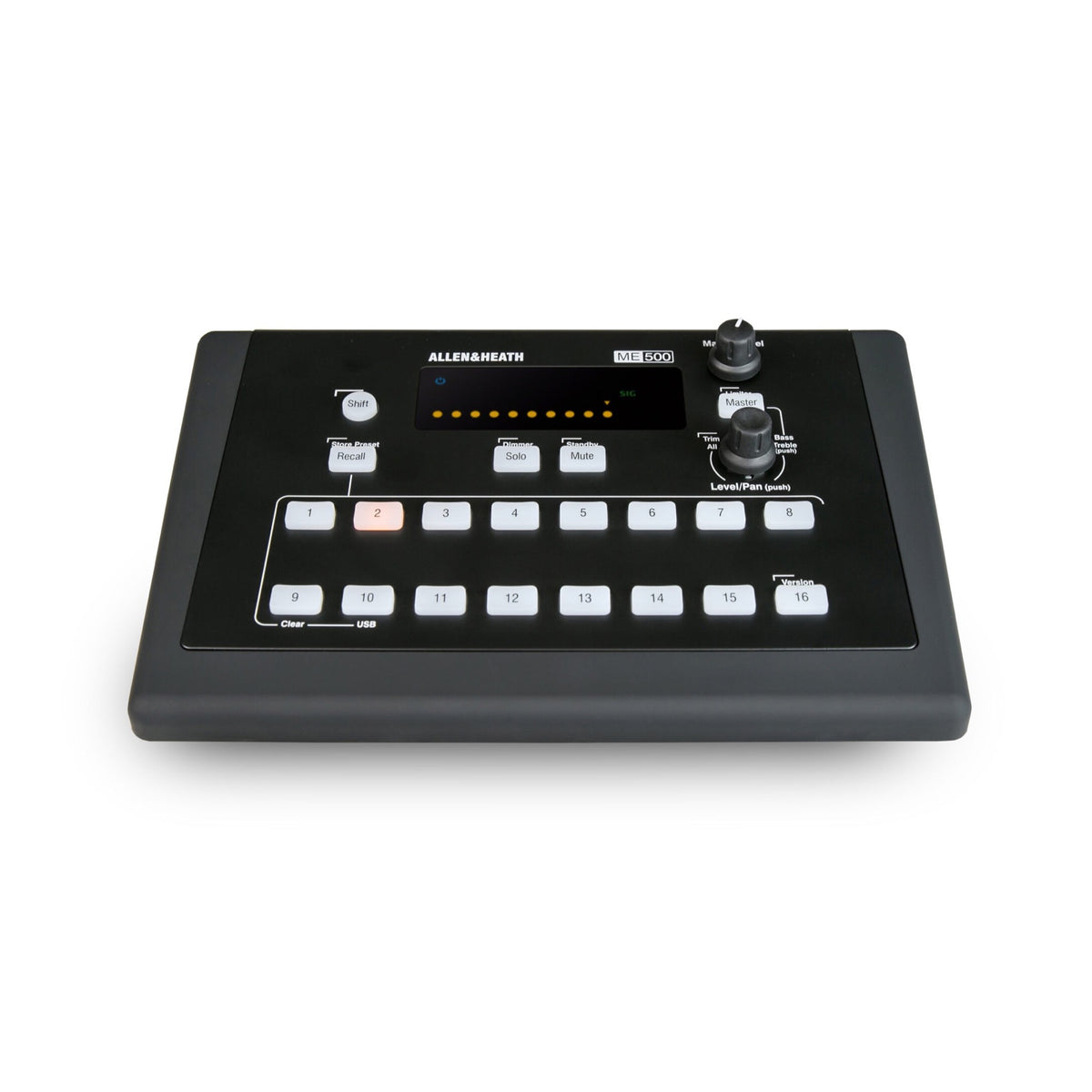

Allen & Heath ME-500 is a 16-source personal monitor mixer. Musicians can adjust their headphone mix independently of the main front-of-house mix.

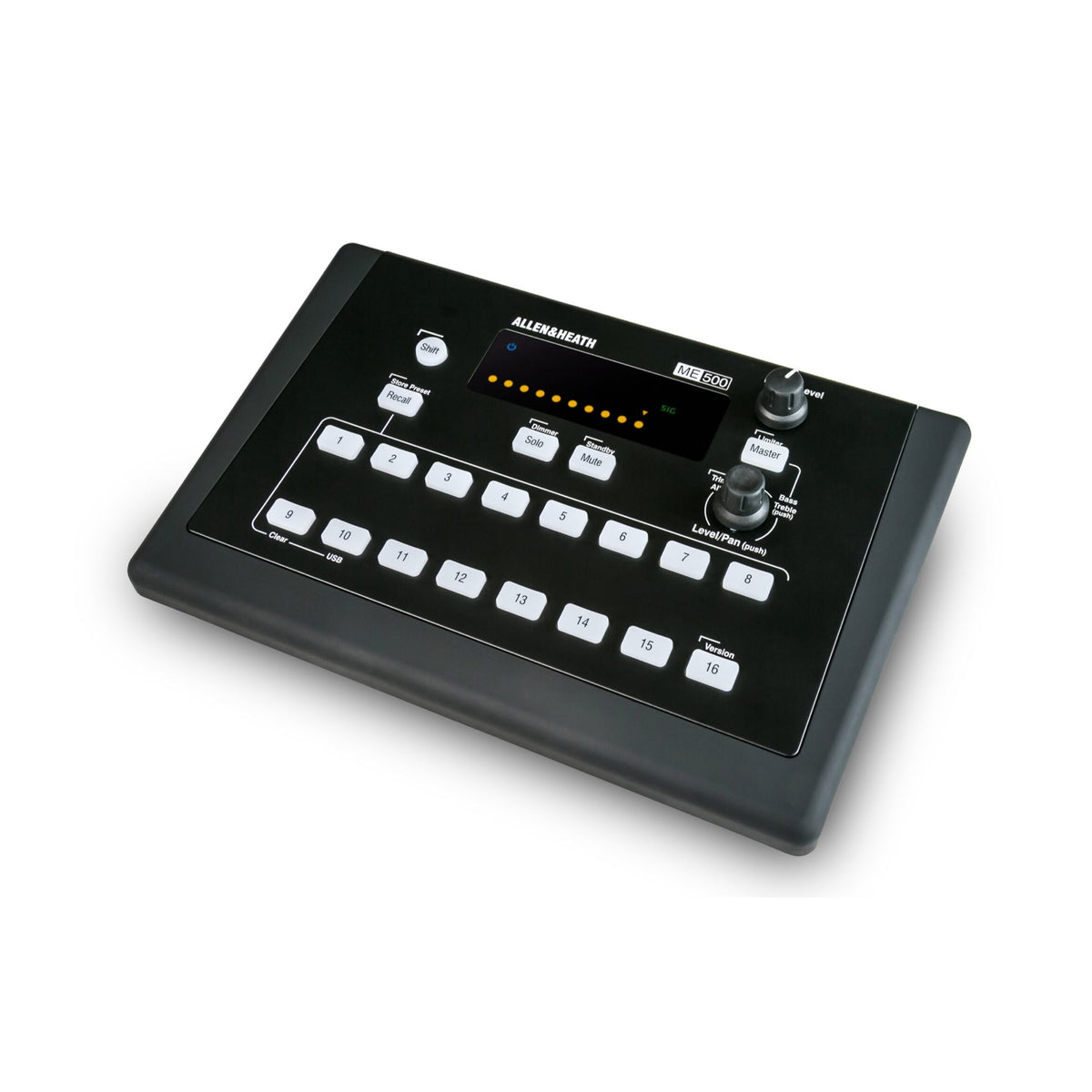

Each selected source has level, pan, mute and solo controls. Received ME channels are automatically assigned to the 16 selection keys, starting from channel 1. A stereo pair linked at the source console occupies one key.

A two-band master EQ and adjustable limiter process the headphone mix. Eight user presets store individual mixes for recall. USB flash media transfer settings and update firmware; the USB port does not carry audio.

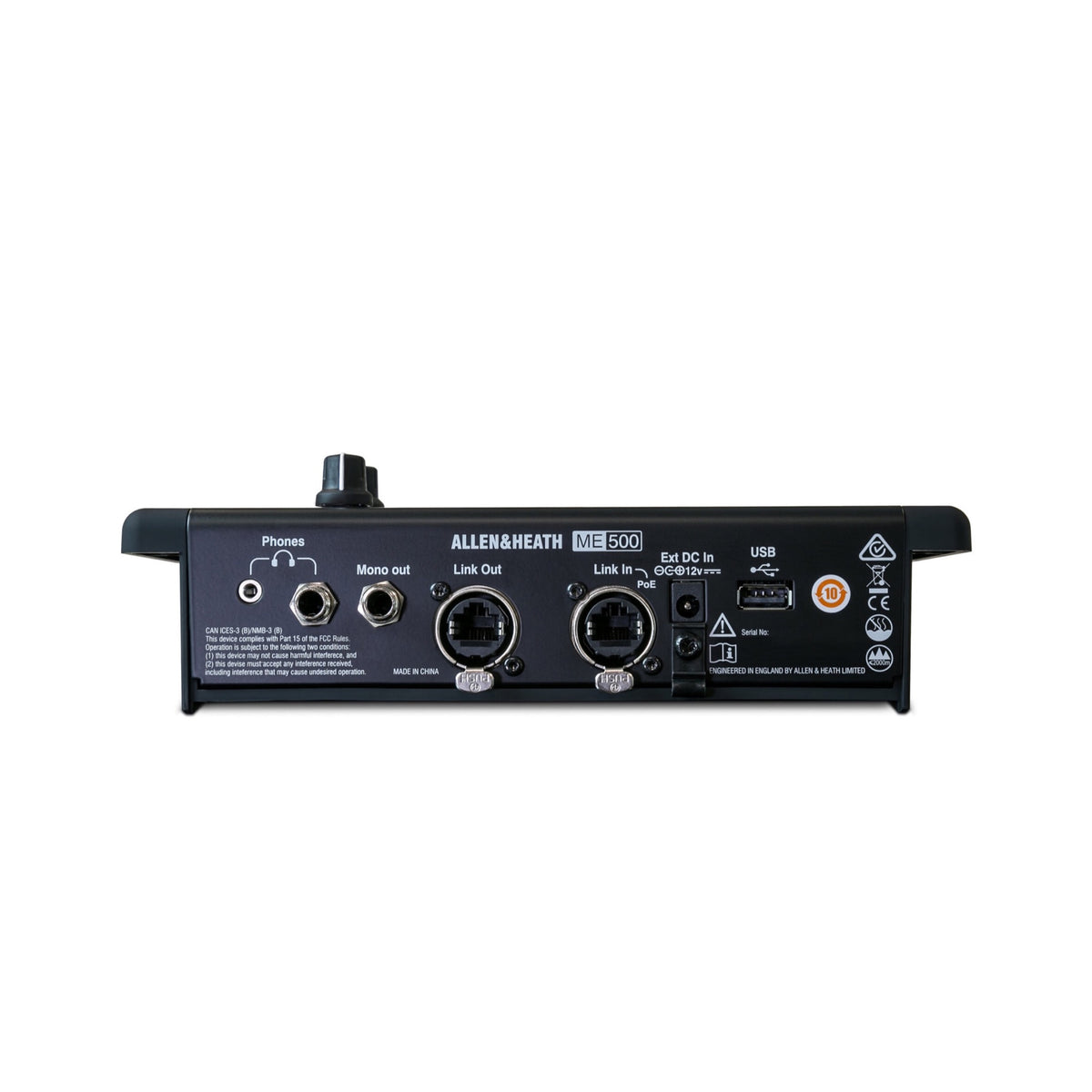

Link In and Link Out support daisy-chained ME-500 units, or connection through a ME-U hub and a suitable PoE network switch. Power comes from PoE or the supplied external adapter. Link Out does not provide PoE, so each daisy-chained mixer needs its own power supply.

ME-500 works with a compatible ME connection on dLive, Avantis, SQ and Qu consoles. Other manufacturers’ systems require a ME-U hub and an appropriate 48 kHz Dante or MADI card. An integrated 3/8-inch threaded insert supports microphone stand mounting.

Main Features

• 16 mono or stereo sources provide individual control over instruments and vocals.
• Level and pan controls build a personal headphone mix.
• Mute and solo functions isolate or remove selected sources.
• Two-band master EQ adjusts the tone of the overall mix.
• An adjustable limiter restricts the largest headphone signal peaks.
• Eight user presets store levels, pans and mutes.
• 3.5 mm and 6.35 mm headphone sockets accommodate different headphones.
• A mono line output connects to an active monitor speaker or separate amplifier.
• PoE power reduces the need for individual power leads at each musician’s position.

Technical Specifications

• Sources: 16 mono or stereo
• Digital Format: 48 kHz, 24-bit
• Frequency Response: 10 Hz - 20 kHz, +0/-1 dB
• Master Processing: 2-band EQ; limiter threshold from -24 to 0 dB
• Preset Memory: 8 internal presets, transfer via USB flash drive
• Link Connections: 2 × EtherCON RJ45, Link In and Link Out
• ME Link Cable: Cat5e STP, up to 100 m
• Headphone Outputs: 3.5 mm and 6.35 mm TRS, stereo
• Line Output: 6.35 mm TRS, balanced mono
• Headphone Output Power: 300 mW + 300 mW into 100 Ω; maximum level +21 dBu
• External Power Supply: 100–240 V AC, 50/60 Hz; output 12 V DC, 1.25 A
• PoE: IEEE 802.3af or 802.3at
• Power Consumption: 10 W
• Operating Temperature: 5–35 °C
• Dimensions (W × D × H): 230 × 160 × 70 mm
• Product Weight: 1.1 kg

What’s Included

• 1 × Allen & Heath ME-500 personal monitor mixer
• 1 × external DC power adapter

The side mounting bracket and headphone hook are sold separately.

Who Is It For

Designed for personal headphone monitoring at concerts, rehearsals and recording sessions using a compatible ME system. Each musician can adjust their own mix without changing the main mix on the console.
