Allen & Heath AHM-64 Audio Matrix Processor

Allen & Heath AHM-64 Audio Matrix Processor

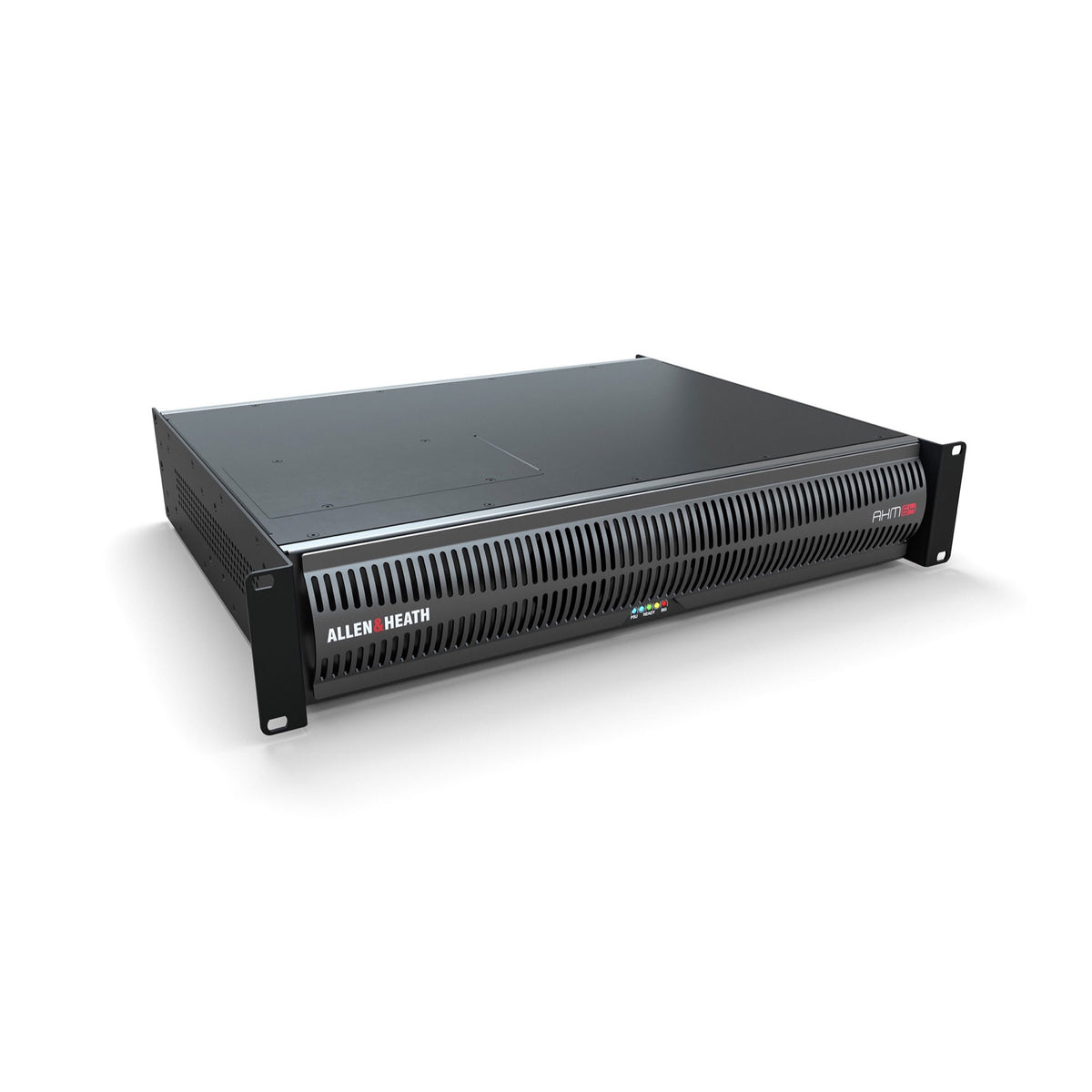

Allen & Heath AHM-64 is a 64 × 64 audio matrix processor. It distributes and processes sound across multiple zones in a building or event venue.

The 96 kHz FPGA system allocates processing channels flexibly to mono or stereo zones. Integrated analogue microphone/line inputs and balanced line outputs use Phoenix terminal connectors.

Input and zone EQ, compression and delay adapt signals to the room. Automatic microphone mixers manage multiple microphones, while priority ducking and ambient noise compensation handle speech and background music levels.

SLink connects compatible Allen & Heath Everything I/O expanders. An optional network card slot accommodates Dante. Dante, acoustic echo cancellation (AEC) and feedback suppression (FBS) require separately purchased cards or a processing module.

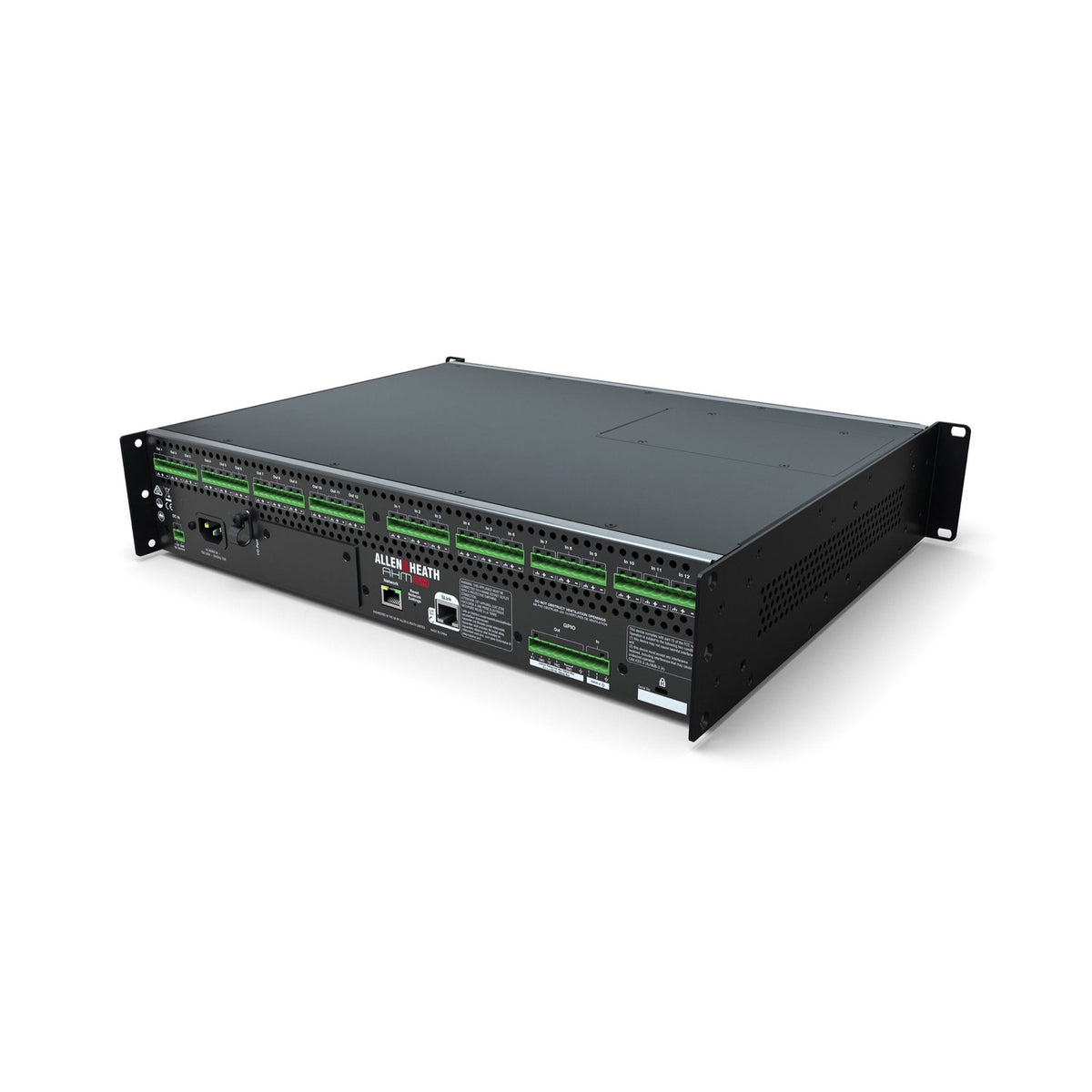

System Manager configures the system. Custom Control provides a tailored user interface, with IP-series controllers, GPIO and TCP/IP offering additional control options. The processor occupies 2U in a 19-inch equipment rack.

Main Features

• 64 mono or 32 stereo zones divide the system according to room requirements.
• Eight automatic microphone mixers support multi-microphone speech applications.
• 8-band parametric EQ, compressors and delay process inputs and zones.
• 28-band graphic EQ provides additional zone frequency correction.
• Ambient noise compensation and priority ducking adapt sound levels to changing conditions.
• 2, 3 or 4-way speaker processing includes crossover filters, 4-band EQ, limiting and delay.
• SLink and an optional network card expand the analogue and network audio system.
• Custom Control and up to 96 IP1, IP6 or IP8 controllers provide multiple control positions.
• Internal audio playback and scheduled events support background music and automatic actions.

Technical Specifications

• Matrix: 64 × 64; up to 64 mono or 32 stereo zones
• Processing: 96 kHz, FPGA

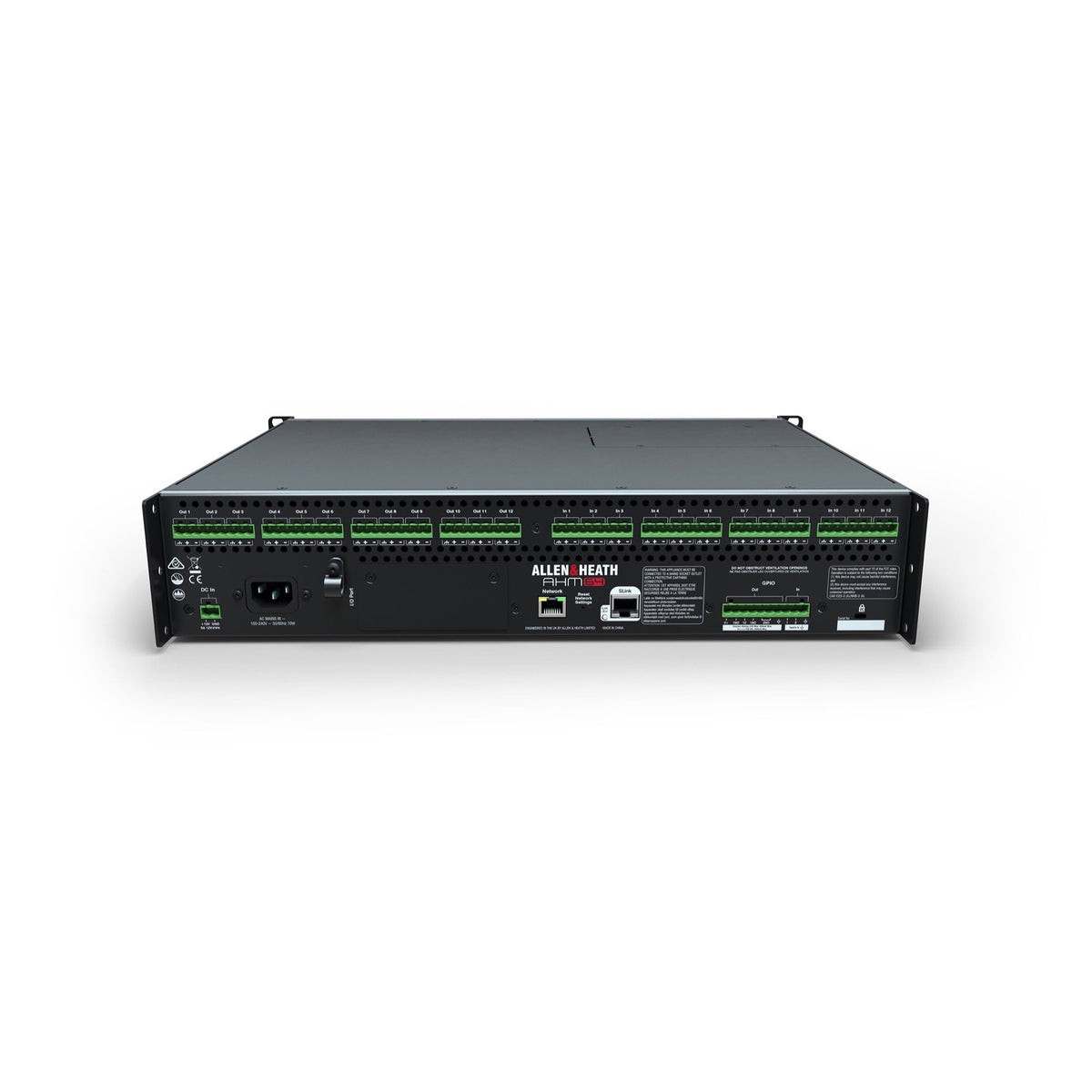

• Analogue Inputs and Outputs: 12 microphone/line inputs, 12 balanced line outputs, Phoenix
• Input Gain: +5–60 dB in 1 dB steps; -20 dB PAD; +48 V phantom power
• Maximum Input Level: +30 dBu with PAD engaged
• Output Level: nominal +4 dBu, maximum +22 dBu; impedance <75 Ω
• Analogue Latency: ≤1 ms from input to output
• Frequency Response: 20 Hz - 25 kHz, +0/-0.8 dB
• Dynamic Range: 110 dB
• THD+N: 0.005 % at +16 dBu, 1 kHz and +5 dB gain
• SLink and Network Card: SLink 128 × 128; card slot up to 128 × 128; optional Dante 64 × 64 card
• GPIO: 2 inputs, 2 outputs; optional 8 × 8 network module
• Memory: 32 user profiles, 500 presets, 50 scheduled events
• Audio Playback: approximately 3 GB; mono/stereo WAV (16/24-bit, 44.1/48/96 kHz), MP3, FLAC
• Power Supply: 100–240 V AC, 50–60 Hz; backup 12 V DC, at least 5 A, using a separate supply
• Power Consumption: 70 W maximum
• Operating Temperature: 0–40 °C
• Dimensions (W × D × H): 482.6 × 364 × 91.2 mm
• Product Weight: 7 kg
• Additional Functions: NTP time synchronisation, EQ ganging, All-Pass filters
• Source Selection and Delay: up to 20 sources per zone selector; crossfade up to 20 s; input and zone delay up to 683 ms
• Automatic Mic Mixing: 1 × 64, 2 × 32, 4 × 16 or 8 × 8; D-Classic or NOM
• Dante Card Capabilities: 64 × 64 at 96 kHz, AES67 and Dante Domain Manager support

What’s Included

• 1 × Allen & Heath AHM-64 audio matrix processor
• 1 × IEC mains cable
• Phoenix connectors: 1 × 10-pin, 24 × 3-pin, 1 × 2-pin

Who Is It For

Suitable for installed audio systems in hotels, commercial spaces, educational facilities and conference venues. It provides separate routing and processing for multiple zones with accessible everyday control.
