FBT X-LITE 112A Active Loudspeaker

FBT X-LITE 112A Active Loudspeaker

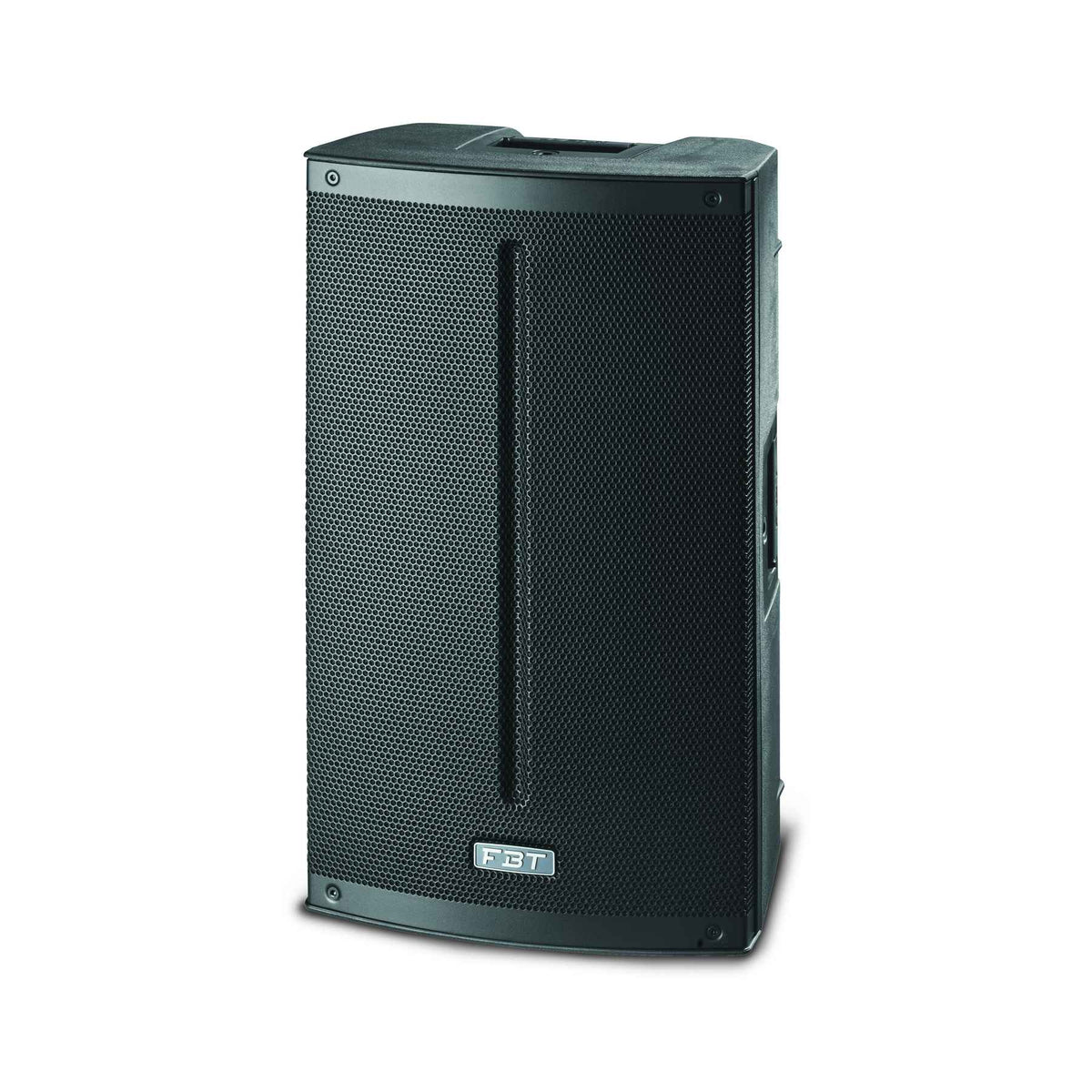

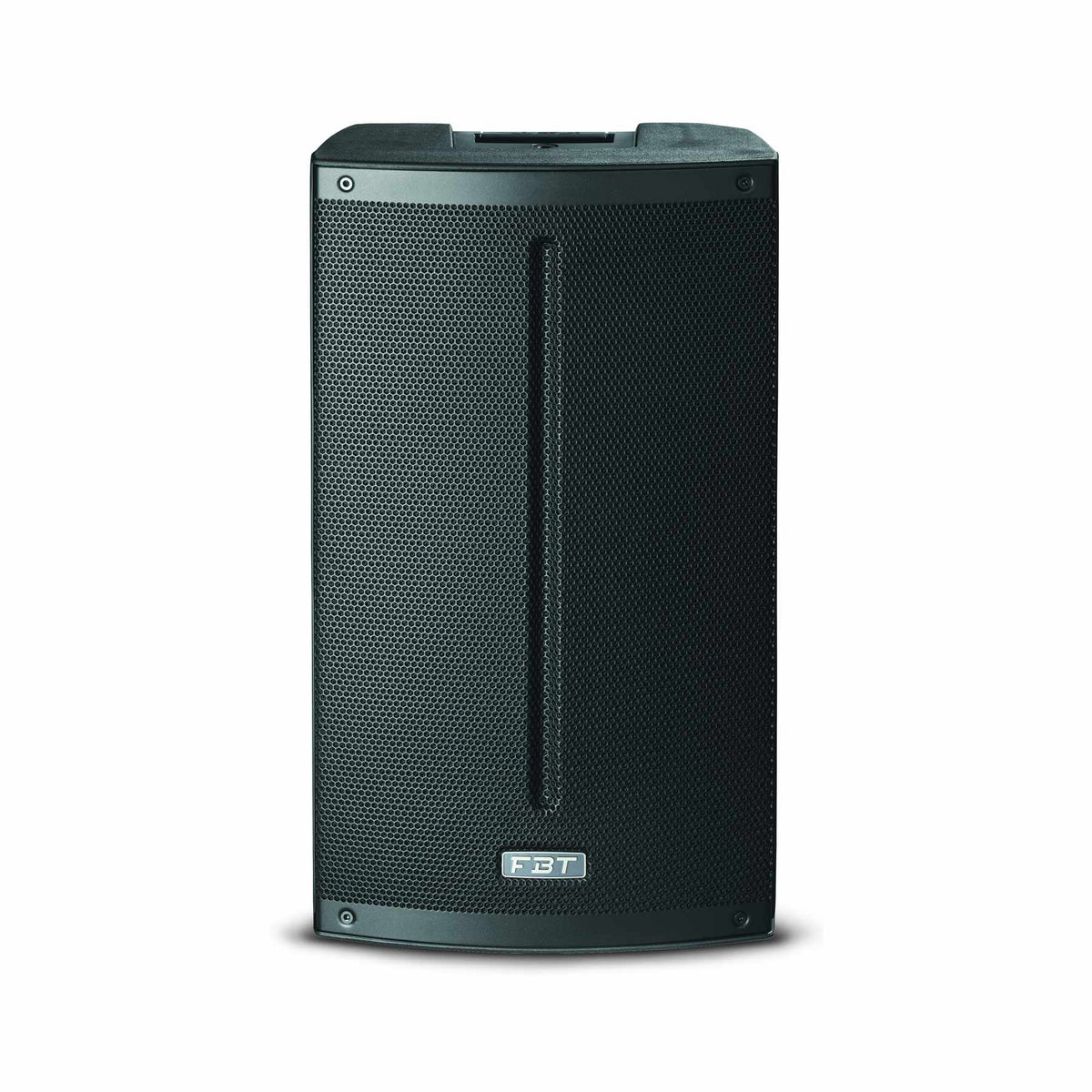

The FBT X-LITE 112A is a two-way active loudspeaker with a 12-inch woofer in a polypropylene cabinet.

FBT rates the separate Class D amplifiers at 1200 / 300 W peak for the LF and HF sections. Frequency response is 50–20,000 Hz (-6 dB), with 129 dB peak SPL and 90° × 60° dispersion.

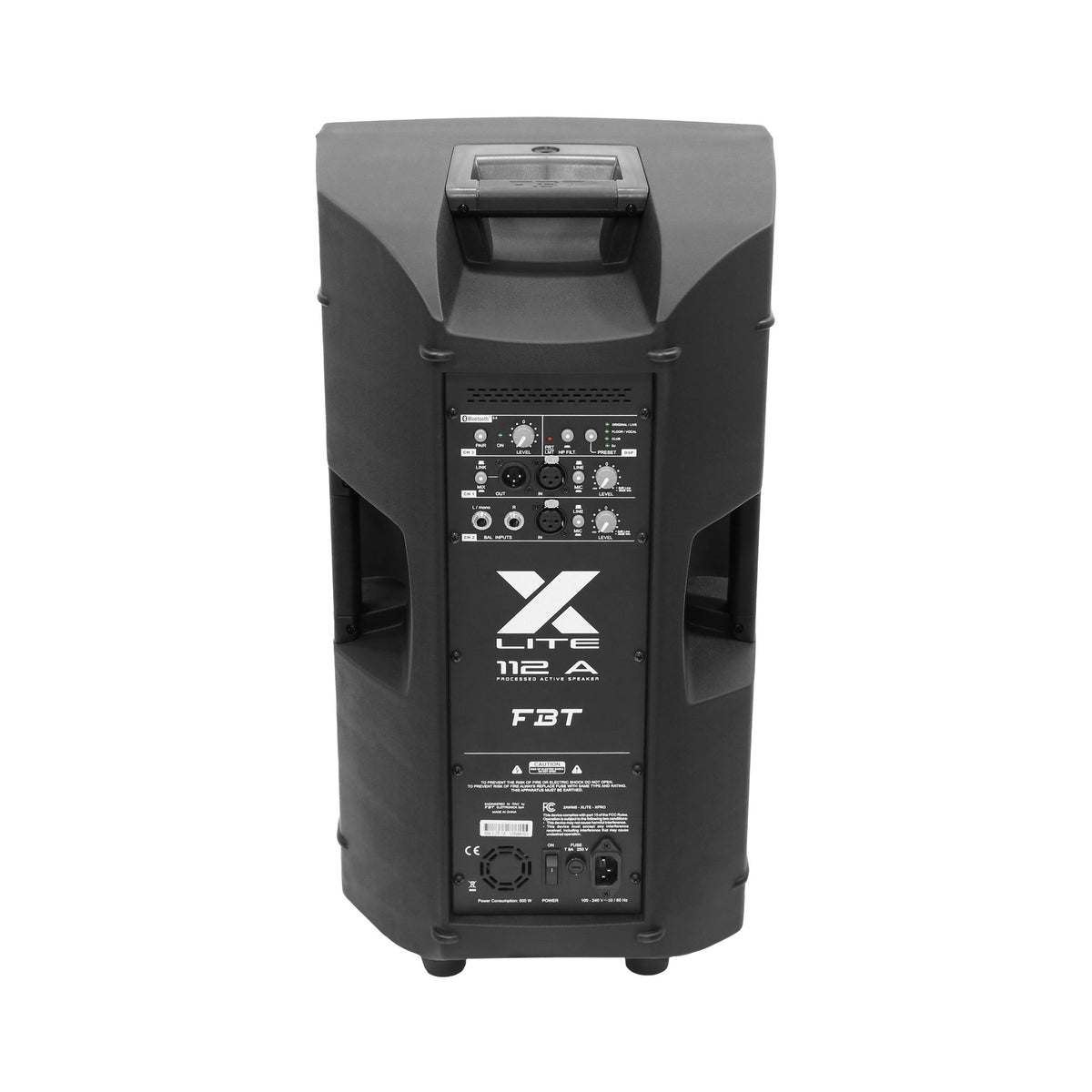

The three-channel controls provide mic/line inputs, a stereo line input and a Bluetooth 5.0 audio channel. Four DSP presets, a high-pass filter and an XLR output with channel/mix selection support system setup.

Its asymmetric cabinet can be placed at 30° or 45° as a stage monitor. A 35 mm pole socket and four M10 mounting points provide further placement options with suitable accessories.

Main Features

• The 12-inch woofer with a 2.5-inch voice coil handles the LF range.
• A 1-inch HF compression driver with a 1.4-inch voice coil handles the HF range.
• Separate built-in Class D amplifiers drive the LF and HF sections.
• Four DSP presets provide selectable starting points for system tuning.
• Bluetooth 5.0 accepts audio from a compatible device.
• A high-pass filter supports integration with a subwoofer.
• The XLR output passes either a channel signal or a mix to another device.
• The 30° and 45° cabinet positions support stage monitor use.
• A 35 mm pole socket and four M10 points support stand or bracket installation.

Technical Specifications

• Manufacturer code: 43543
• System: two-way active loudspeaker
• LF woofer: 12 in, 2.5 in voice coil
• HF driver: 1 in exit, 1.4 in voice coil
• Peak amplifier power (LF / HF): 1200 / 300 W
• Frequency response: 50–20,000 Hz (-6 dB)
• Maximum SPL (continuous / peak): 124 / 129 dB
• Dispersion: 90° × 60°
• DSP: 4 presets
• Bluetooth: 5.0
• Connections: XLR input and output, stereo jack input
• Input impedance: 22 kΩ
• Mounting: 35 mm pole socket, 4 M10 points
• AC power requirement: 500 W
• Power cord length: 5 m
• Cabinet: polypropylene, steel grille
• Dimensions (W × H × D): 352 × 619 × 356 mm
• Product net weight: 16.2 kg

What’s Included

• 1 × FBT X-LITE 112A active loudspeaker

Who Is It For

For portable live sound, DJ events and conferences, floor monitoring or fixed sound systems.
