FBT JMAXX 110A Active Loudspeaker

FBT JMAXX 110A Active Loudspeaker

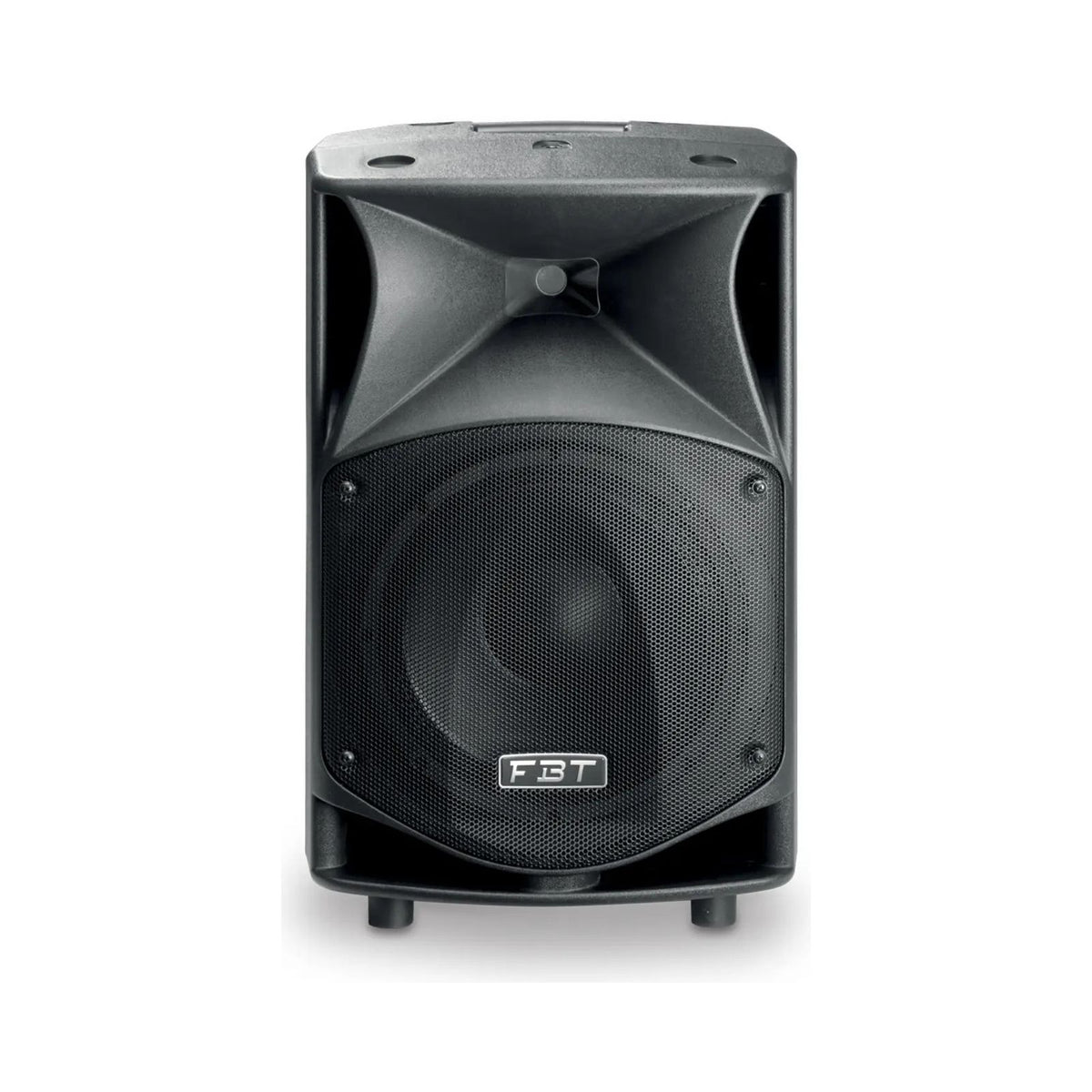

The FBT JMAXX 110A is a two-way active loudspeaker with a 10-inch woofer in a bass-reflex enclosure.

Separate Class D amplifiers provide 700 W RMS for low frequencies and 200 W RMS for highs. The specified response is 58–20,000 Hz (-6 dB), with a peak SPL of 129.5 dB. Four DSP EQ presets provide starting points for different setups.

The asymmetrical cabinet can be positioned as a floor monitor at 12°, 40° or 55°. Its 90° horizontal by 60° vertical dispersion also helps plan main speaker coverage.

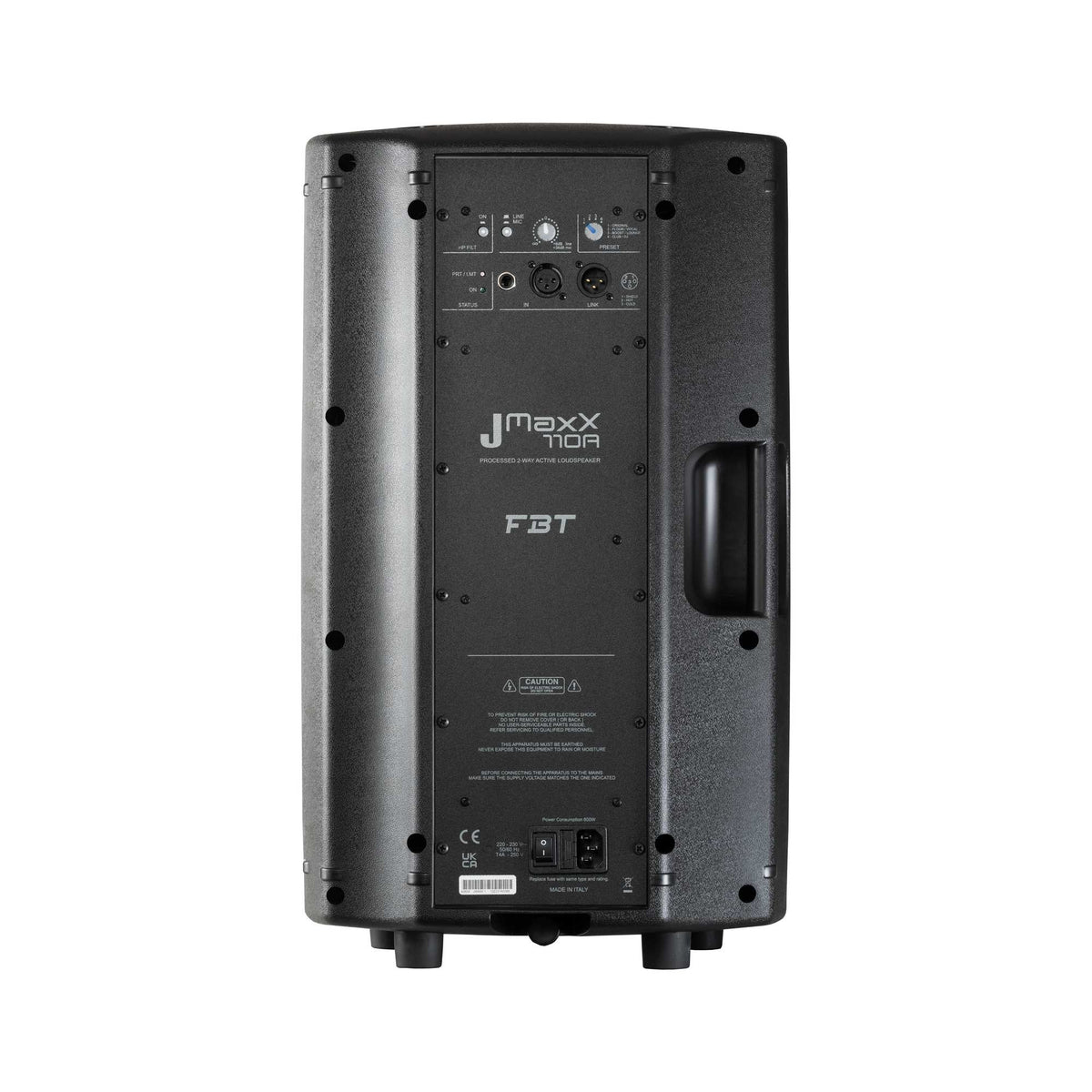

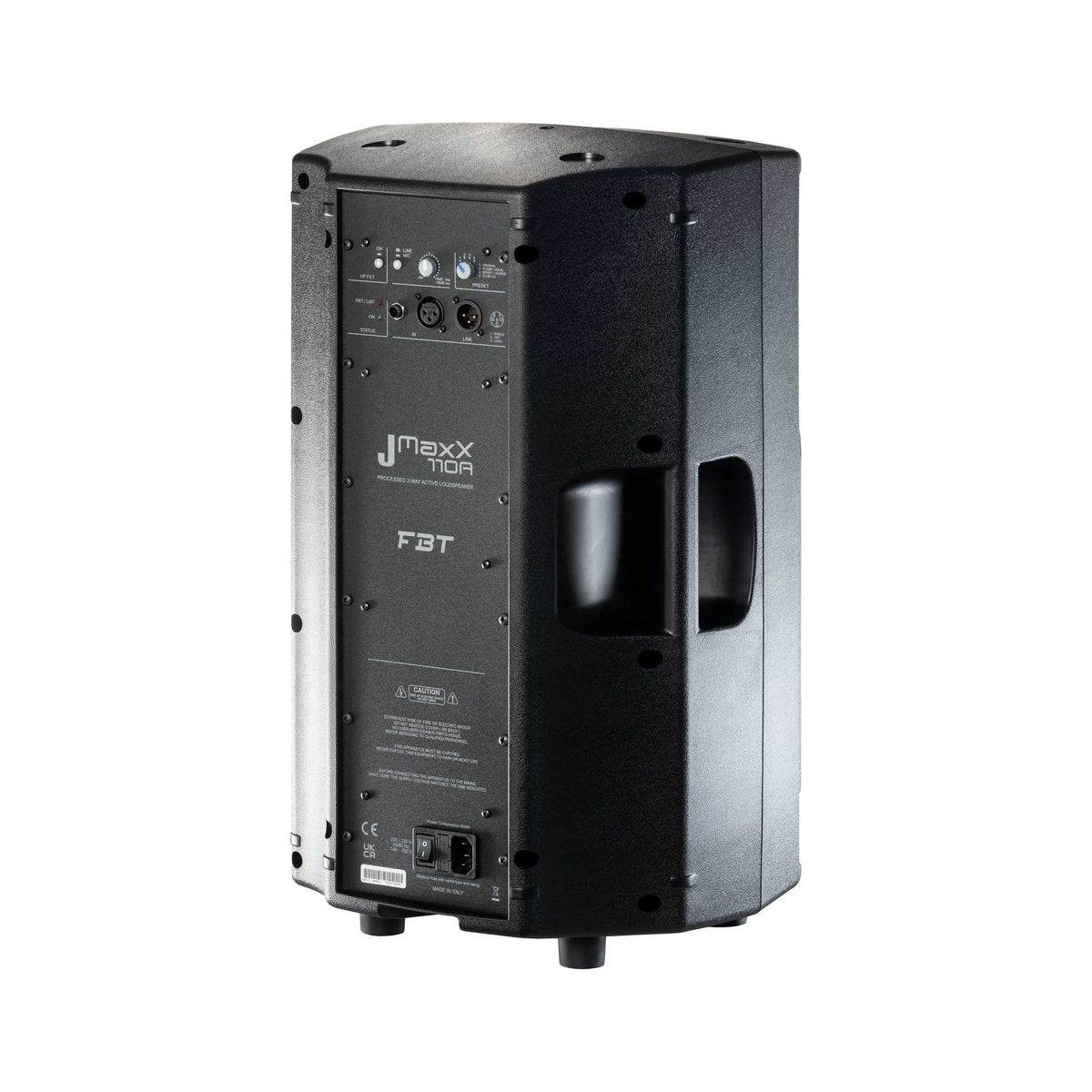

The rear panel has an XLR / 6.3 mm jack input, an XLR link output, level and DSP controls, a high-pass filter and a mic/line switch. The polypropylene enclosure includes handles, two M10 suspension points and a 35 mm pole socket.

Main Features

• A 10-inch woofer with a 2-inch voice coil and a 1-inch HF driver reproduce separately amplified frequency bands.
• Four DSP EQ presets offer starting settings for different applications.
• A mic/line switch sets the XLR/Jack input for the connected source.
• A high-pass filter and level control provide further adjustment on the speaker.
• The XLR link output passes the input signal to another part of the system.
• The 12°, 40° and 55° cabinet angles support floor-monitor placement.
• A 35 mm pole socket and two M10 points provide mounting options with suitable hardware.
• A steel front grille protects the woofer, while cabinet handles assist with transport.

Technical Specifications

• Manufacturer code: 42604
• System: two-way active bass-reflex loudspeaker
• LF woofer: 10 in, 2 in voice coil
• HF driver: 1 in exit, 1 in voice coil
• Amplifiers: 700 / 200 W RMS (FBT MAX, 2 ms burst)
• Peak amplifier power: 1400 / 400 W
• Frequency response: 58–20,000 Hz (-6 dB)
• Maximum SPL: 123.5 dB continuous / 129.5 dB peak (free space)
• Dispersion: 90° horizontal × 60° vertical
• Crossover frequency: 1.8 kHz
• Input impedance: 22 kΩ
• Connections: XLR / 6.3 mm jack input, XLR link output
• Controls: 4 DSP EQ presets, level, high-pass filter, mic/line switch
• Floor monitor angles: 12°, 40° and 55°
• Mounting: 35 mm pole socket, 2 M10 suspension points
• AC power requirement: 600 W
• Power cord length: 5 m
• Enclosure: polypropylene, steel front grille
• Dimensions (W × H × D): 320 × 550 × 275 mm
• Product net weight: 11.5 kg

What’s Included

• 1 × FBT JMAXX 110A active loudspeaker

Who Is It For

Suitable for live sound and DJ systems, floor monitoring, and fixed installations for speech or background music.
