Pioneer DJ DDJ-REV5 DJ Controller

Pioneer DJ DDJ-REV5 DJ Controller

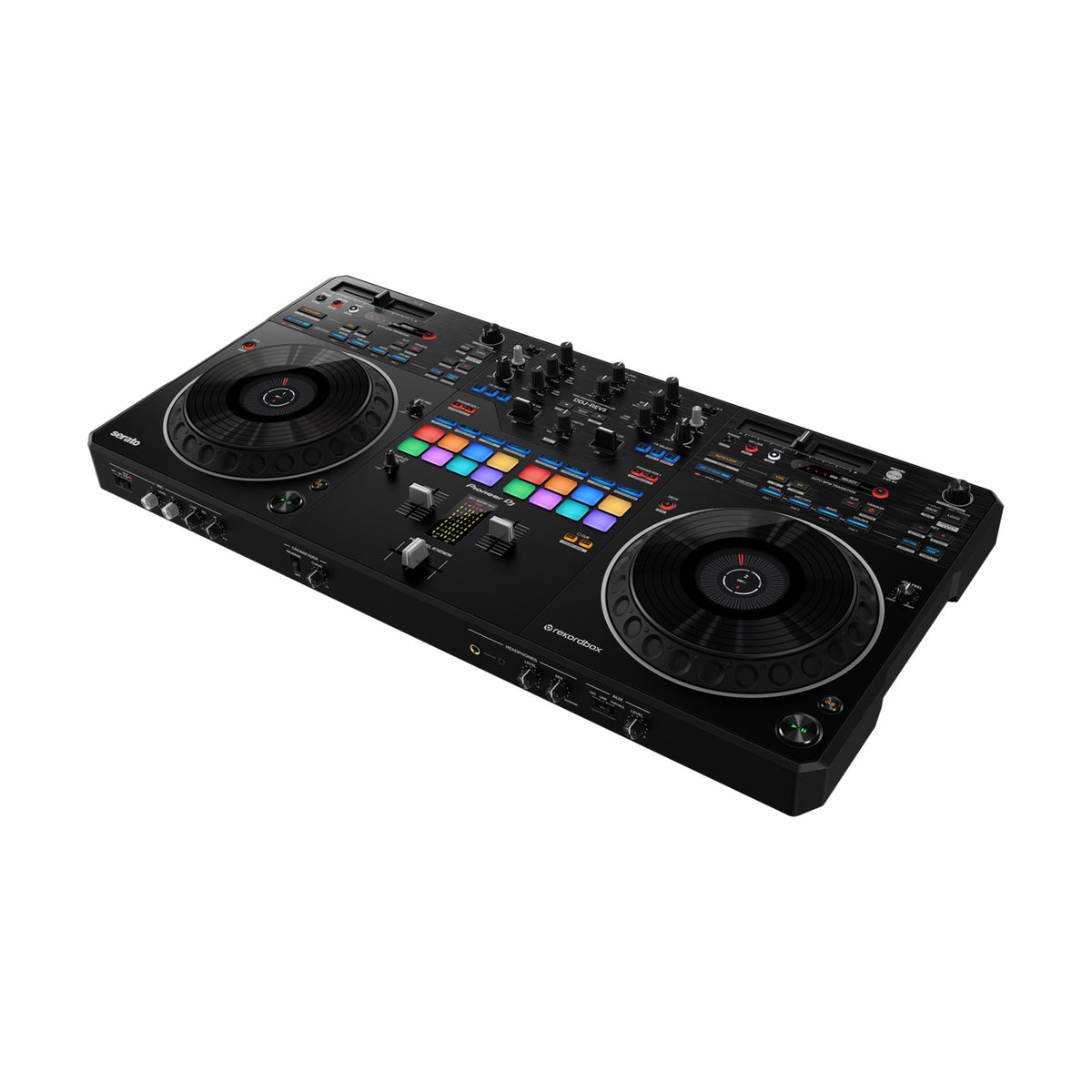

Pioneer DJ DDJ-REV5 is a 2-channel DJ controller.

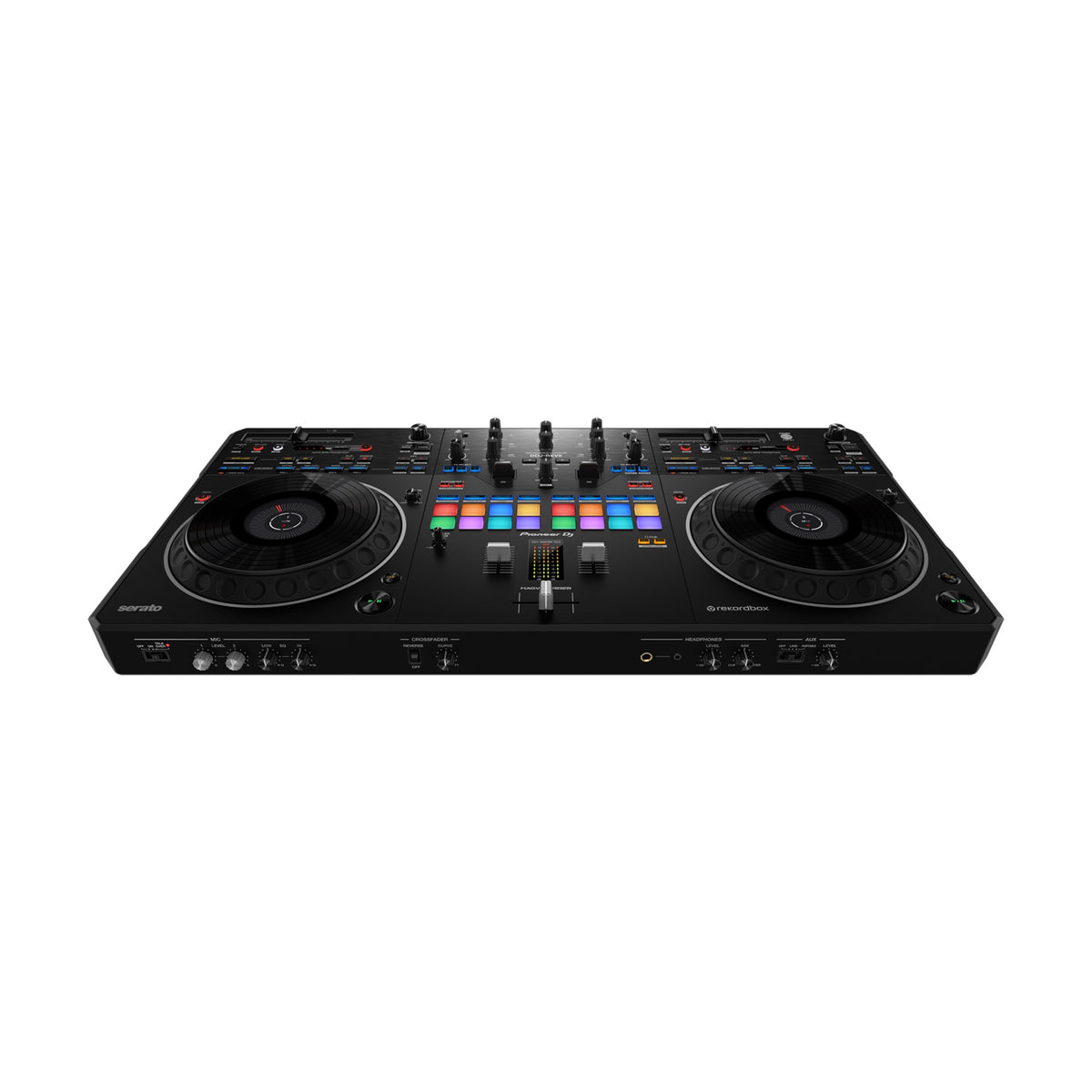

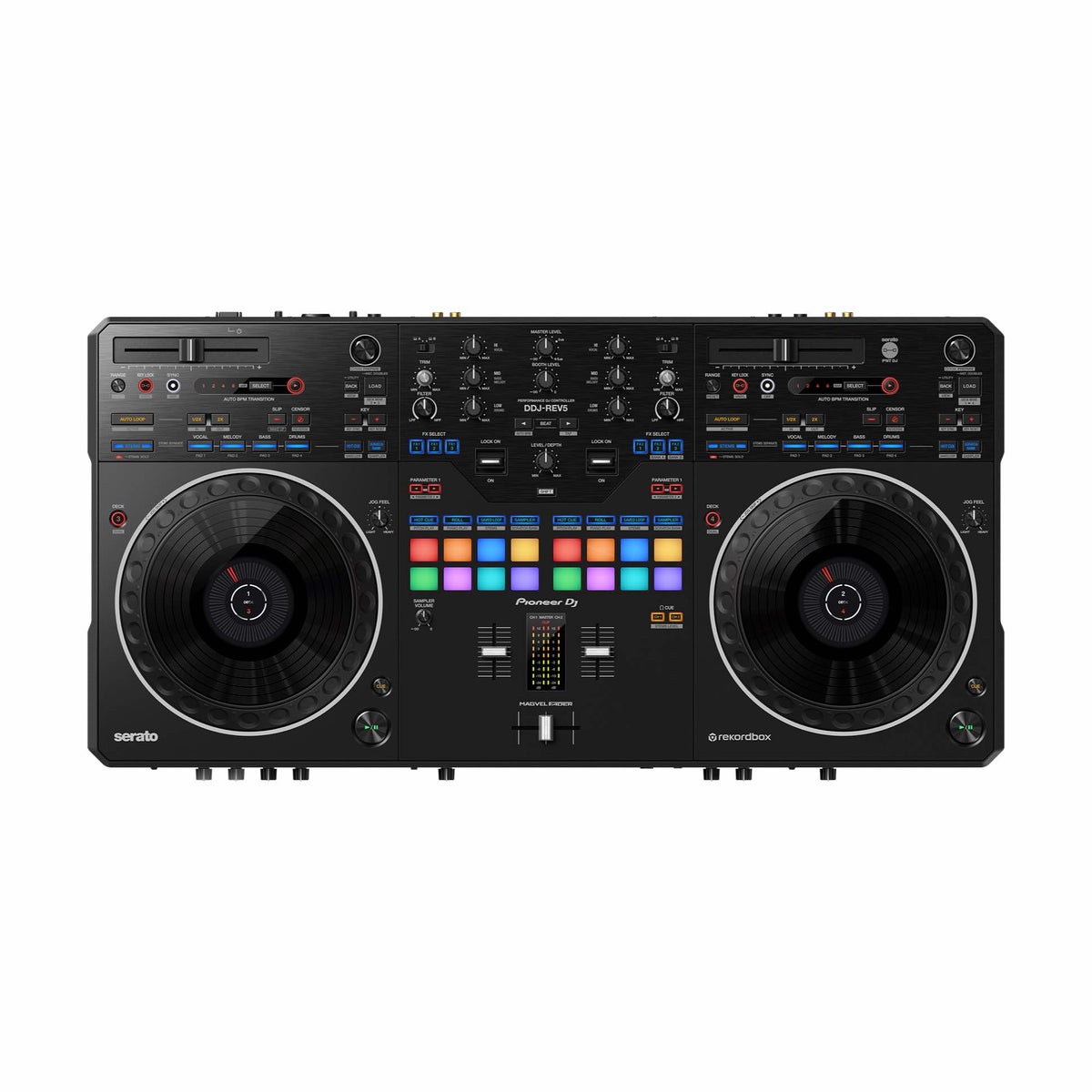

The battle-style layout uses horizontal tempo sliders, with pads and Lever FX in the mixer section. Large jog wheels show playhead position, and Jog Feel adjusts their resistance.

The MAGVEL FADER supports precise scratch control. Serato DJ Pro Stems separates vocals, melody, bass and drums; rekordbox separates vocals, drums and the remaining instruments.

2 USB-C computer ports support DJ handovers with both computers connected. On PC/Mac, Serato DJ Pro and rekordbox work without an extra license or subscription; a Pitch ’n Time DJ activation voucher is included.

Main Features

• Stems Mute / Solo silences or isolates a part; Separate moves it to another deck, and Level controls part volume with the EQ knobs. Deck Move moves the track between decks.
• Auto BPM Transition changes tempo gradually over a chosen number of bars, with optional Stems, Auto Loop and Key Lock settings.
• Piano Play arranges 16 pads like piano keys, triggering a Cue point in semitones with 3 scales available.
• Combo Pad combines 2 modes from Hot Cue Roll, Saved Loop and Sampler on one deck. Each deck has 8 backlit pads, with Hot Cue, Pad FX and Beat Jump also available.

Technical Specifications

• Power: 5 V DC, 3 A; adapter 100–240 V AC, 50/60 Hz; off 0.3 W
• Sampling and conversion: 48 kHz; 24 bit
• Frequency response: 20 Hz - 20 kHz (USB and MIC and AUX)
• Signal-to-noise ratio: 110 dB (USB, rated output, A-weighted)
• Total harmonic distortion: 0.003% (USB, 20 Hz - 20 kHz)

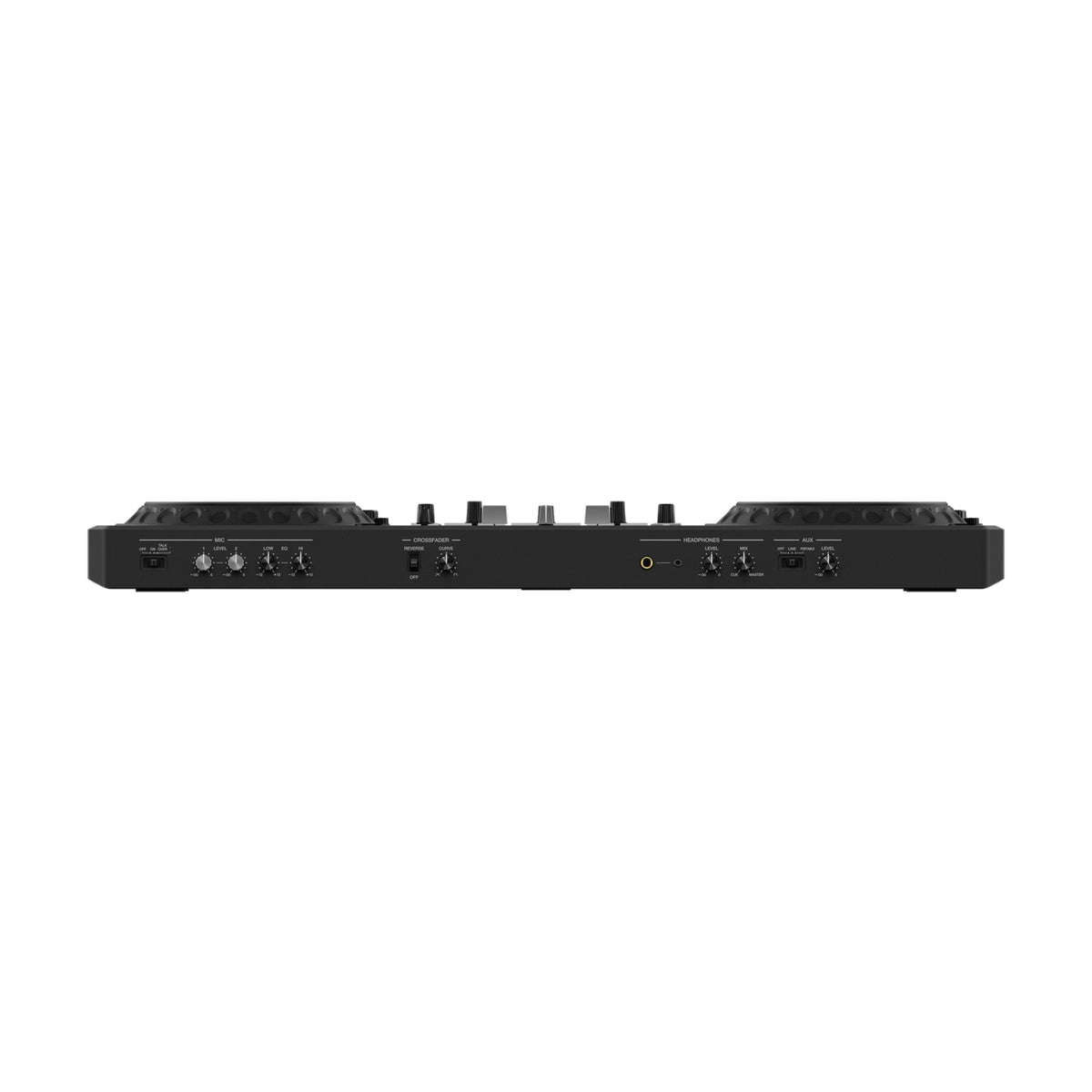

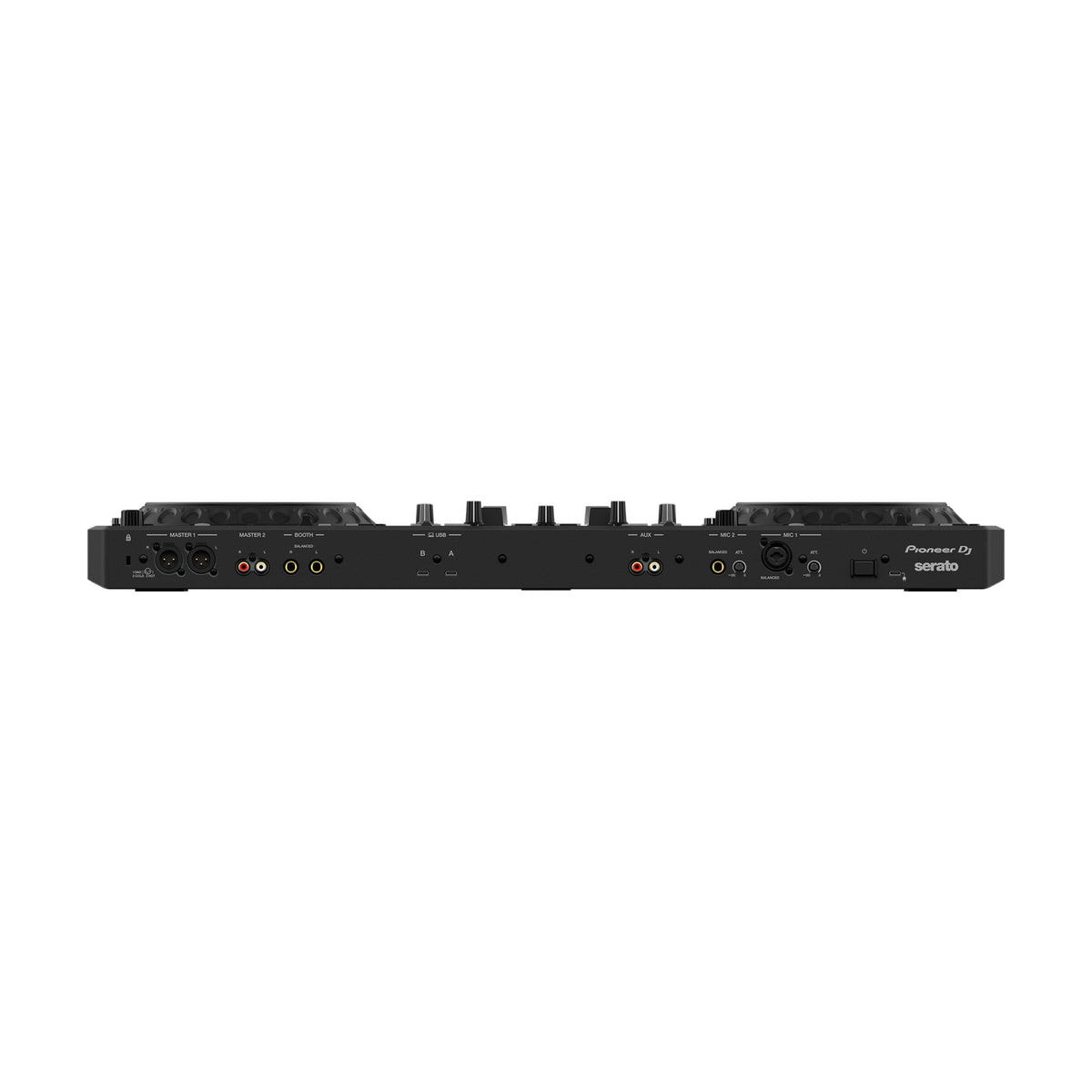

• Connections: 2 USB-C computer ports and separate USB-C power; MIC 1 XLR / 6.35 mm TRS, MIC 2 TRS; AUX RCA; MASTER 1 XLR, MASTER 2 RCA; BOOTH 6.35 mm TRS; headphones 6.35 and 3.5 mm stereo
• Nominal levels and impedance: AUX LINE −12 dBu, PORTABLE −24 dBu / 47 kΩ; MIC −57 dBu / 3 kΩ; MASTER 1 +6 dBu / 10 kΩ / ≤450 Ω; MASTER 2 +2 dBu / 10 kΩ / ≤820 Ω; BOOTH +6 dBu / 10 kΩ / ≤900 Ω; headphones +8 dBu / 32 Ω / ≤10 Ω
• Dimensions (W × H × D): 736 × 73.4 × 377.2 mm
• Weight: 6.2 kg
• Operating conditions: 5–35 °C; 5–85% humidity, non-condensing
• Additional audio specifications: S/N AUX LINE 95 dB, PORTABLE 89 dB, MIC 81 dB; maximum MASTER 1 and BOOTH +24 dBu, MASTER 2 +20 dBu / 10 kΩ; MIC EQ ±12 dB at 10 kHz and 100 Hz

What’s Included

• 1 Pioneer DJ DDJ-REV5 DJ controller
• USB cable
• AC adapter
• Power cord
• Serato Pitch ’n Time DJ activation voucher

Who Is It For

For cueing and mixing tracks with compatible DJ software and scratch performance.
