Klark Teknik DI 20P Two-Channel Passive DI Box

Klark Teknik DI 20P Two-Channel Passive DI Box

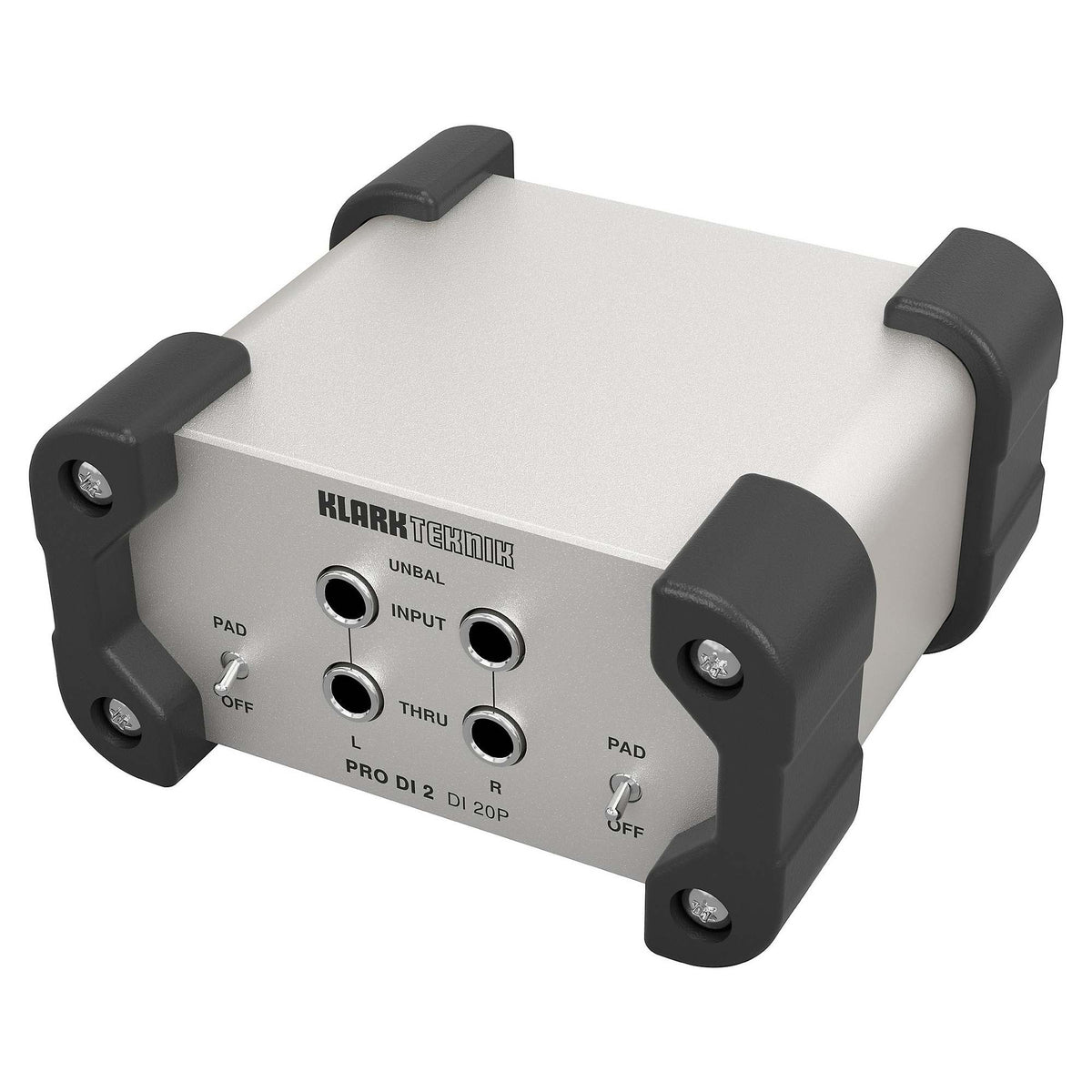

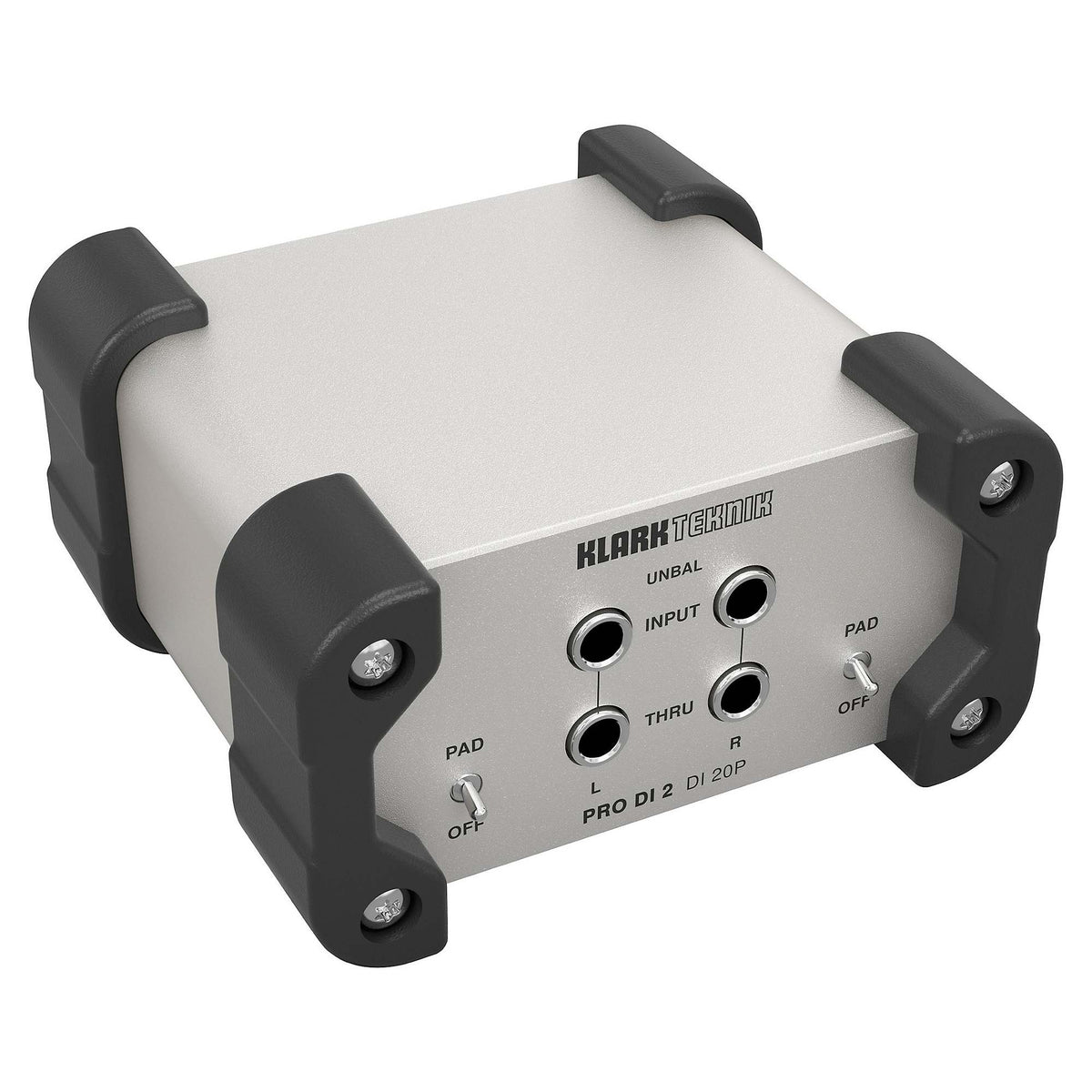

Klark Teknik DI 20P provides two independent passive DI channels in one enclosure. It feeds instrument and line-level signals to a mixing console through balanced XLR outputs.

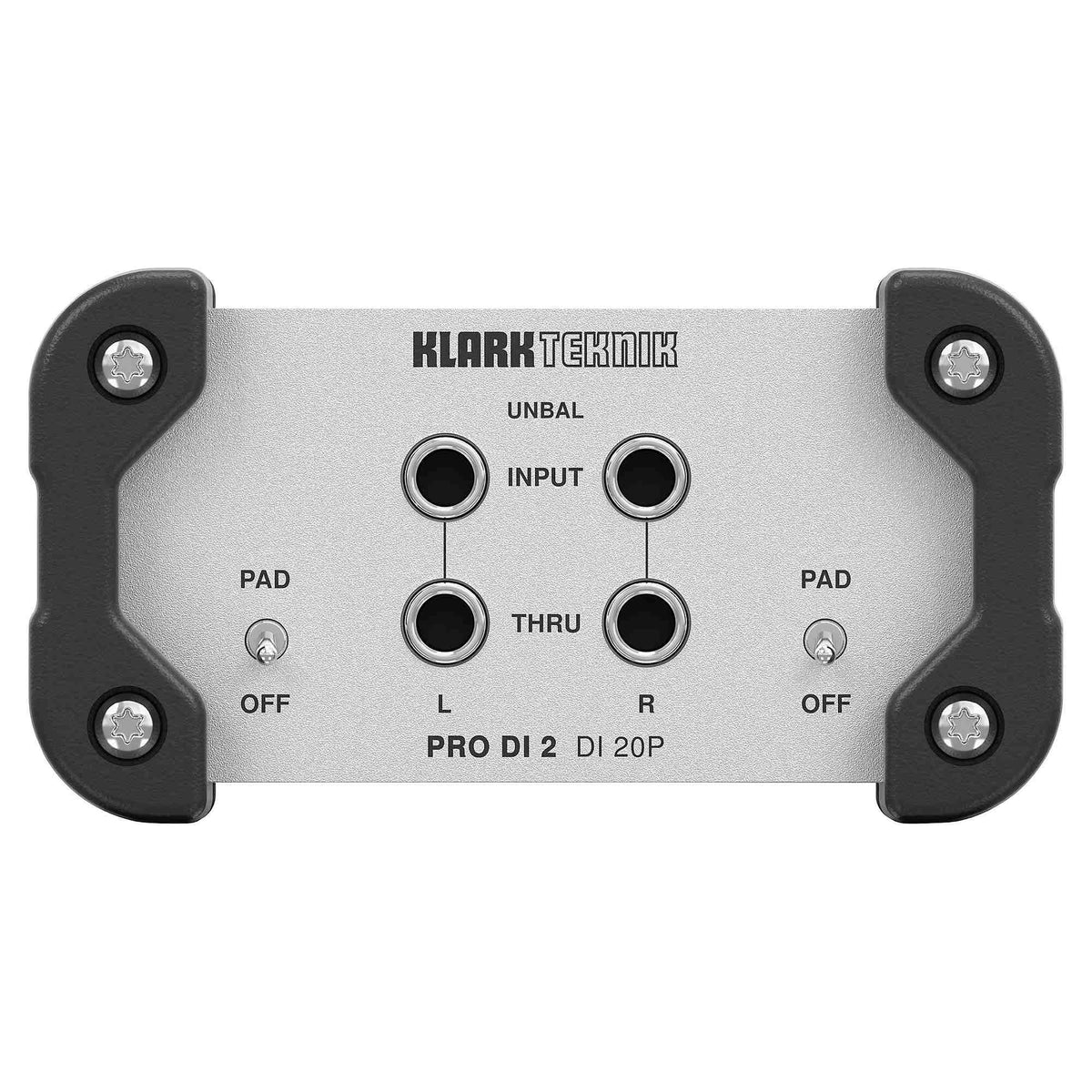

Each channel has a 1/4-inch TS input and a THRU connection for a stage amplifier. A -15 dB pad adds headroom for stronger signals, while Midas transformers provide galvanic isolation.

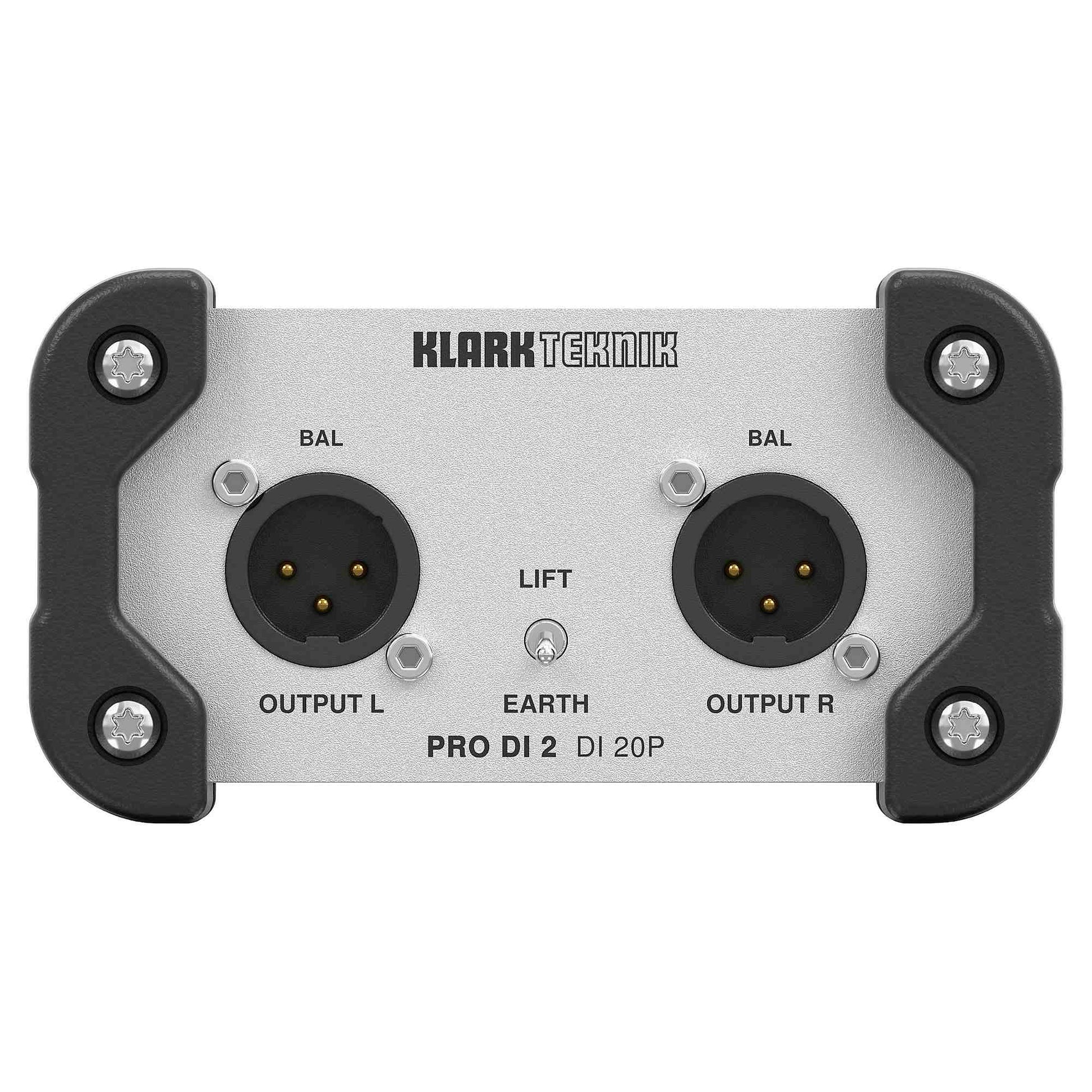

The passive circuit needs no battery or phantom power. Individual Ground Lift switches help address ground-loop problems.

Main Features

• Two independent passive DI channels.
• Midas transformer isolation.
• Two 1/4-inch TS inputs and two THRU sockets.
• Two balanced XLR outputs.
• -15 dB pad on each channel.
• Independent Ground Lift switches.
• No power required.

Technical Specifications

• Inputs: 2 x 1/4-inch TS
• THRU: 2 x 1/4-inch TS
• Outputs: 2 x balanced XLR
• Input impedance: 500 kΩ, 10 kΩ with pad engaged
• Maximum input level: +30 dBu, 1 kHz
• Output impedance: 150 Ω
• Maximum output level: +8.5 dBu, 1 kHz
• Frequency response: 20 Hz to 30 kHz, ±1 dB
• THD+N: 0.01%, 1 kHz, 0 dBu
• Signal-to-noise ratio: 108 dB
• Pad: -15 dB
• Dimensions: 118 x 112 x 64 mm
• Weight: 0.54 kg

What’s Included

• 1 x Klark Teknik DI 20P passive DI box

Who Is It For

Ideal for connecting two guitars, basses, keyboard channels, or other sources to a console in live and studio systems.
