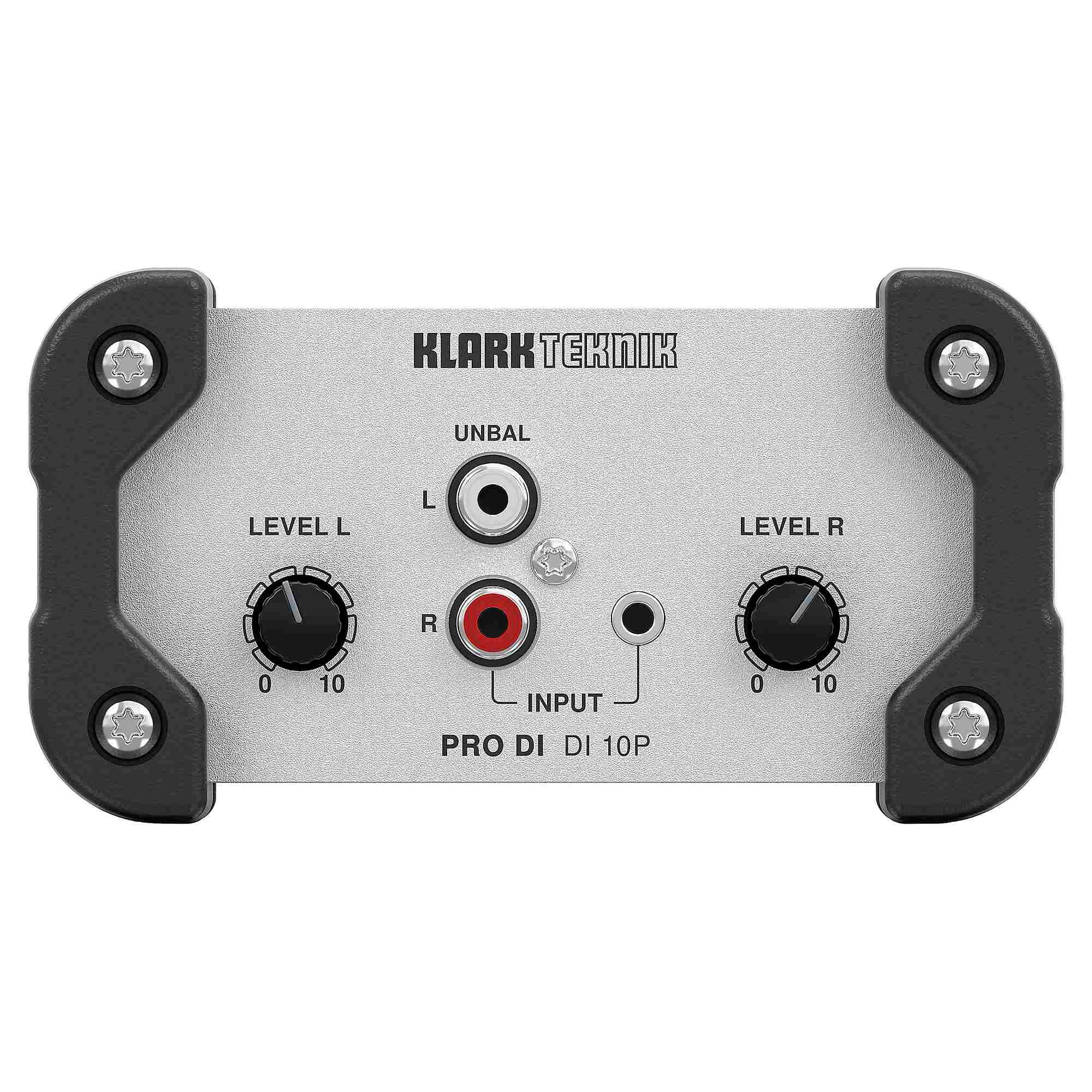

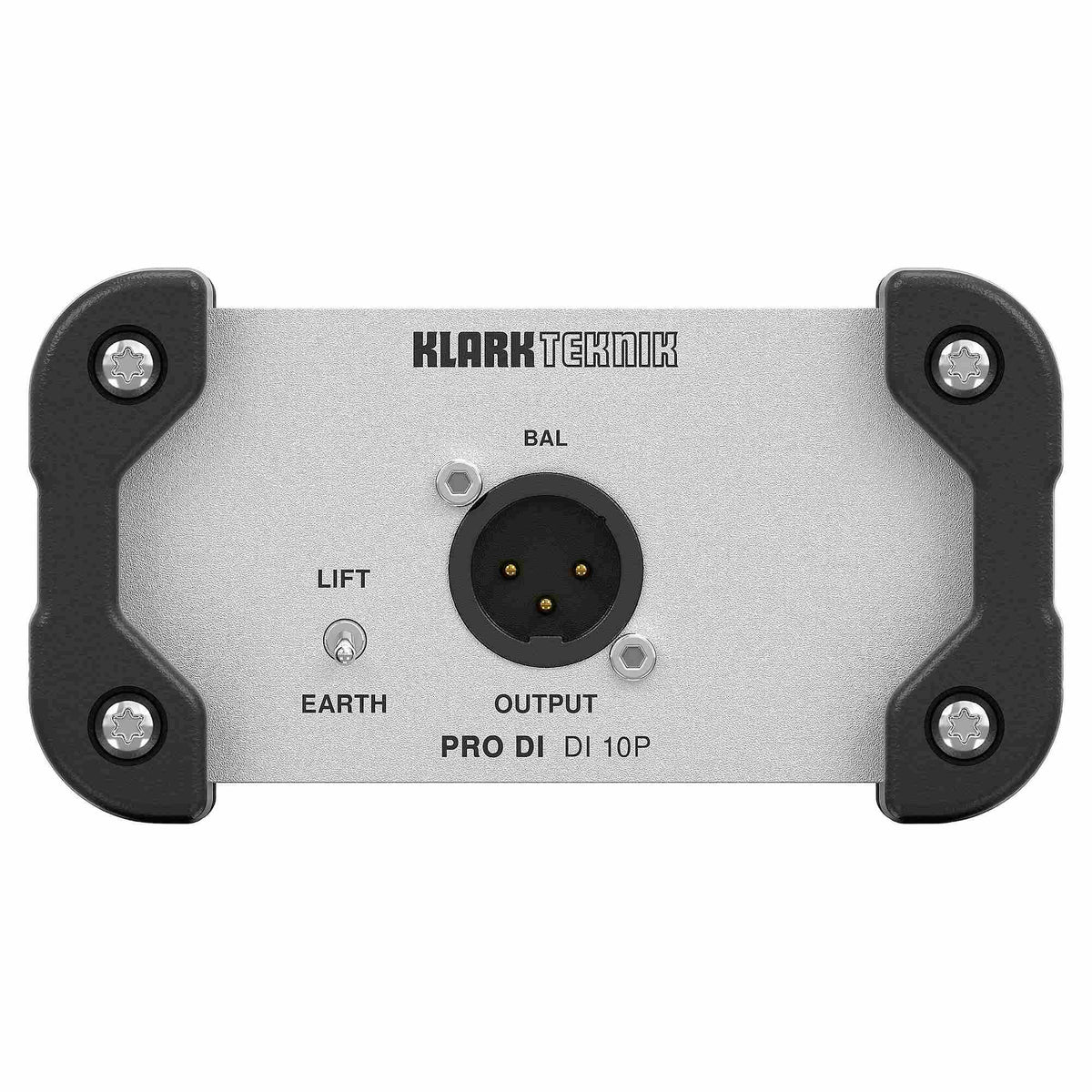

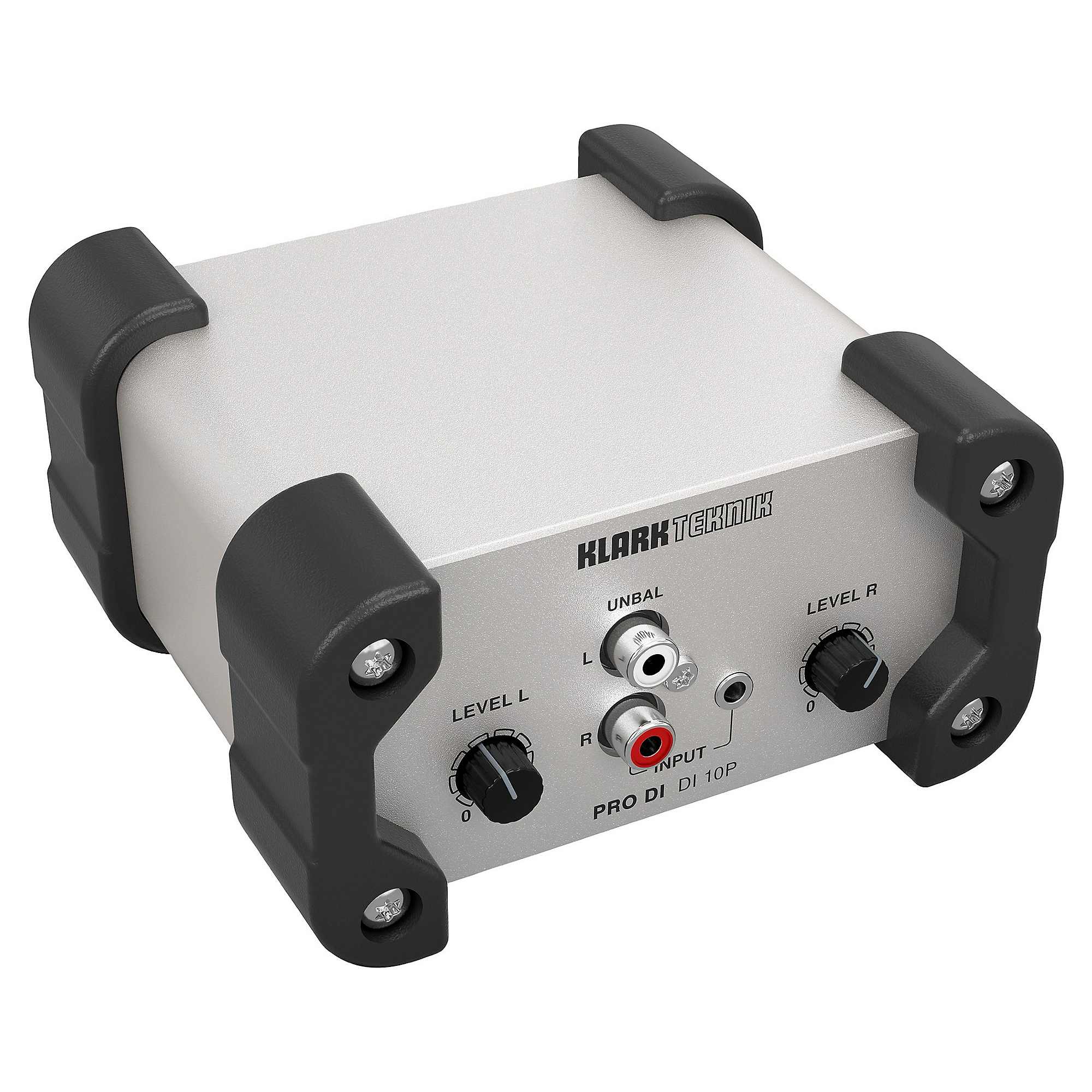

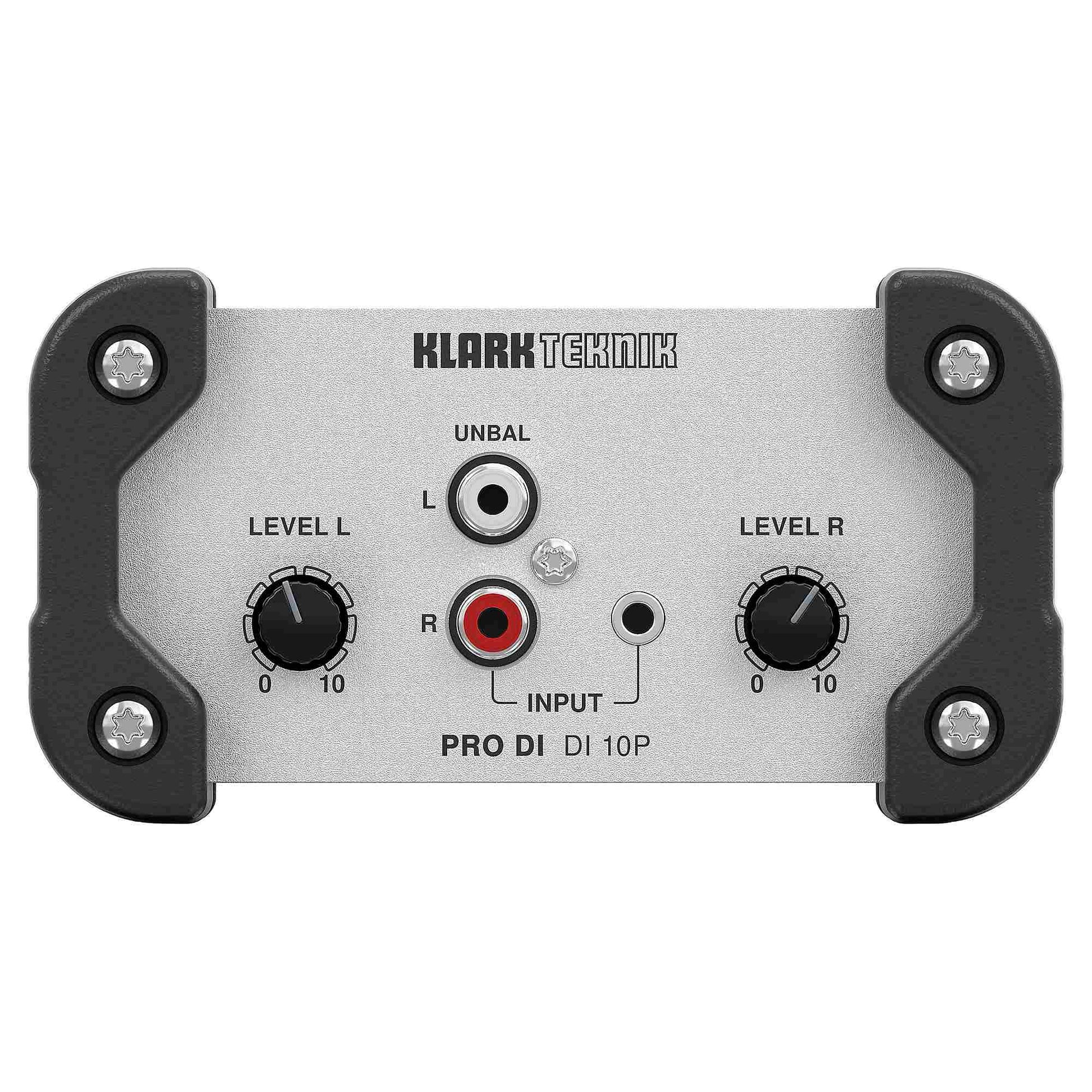

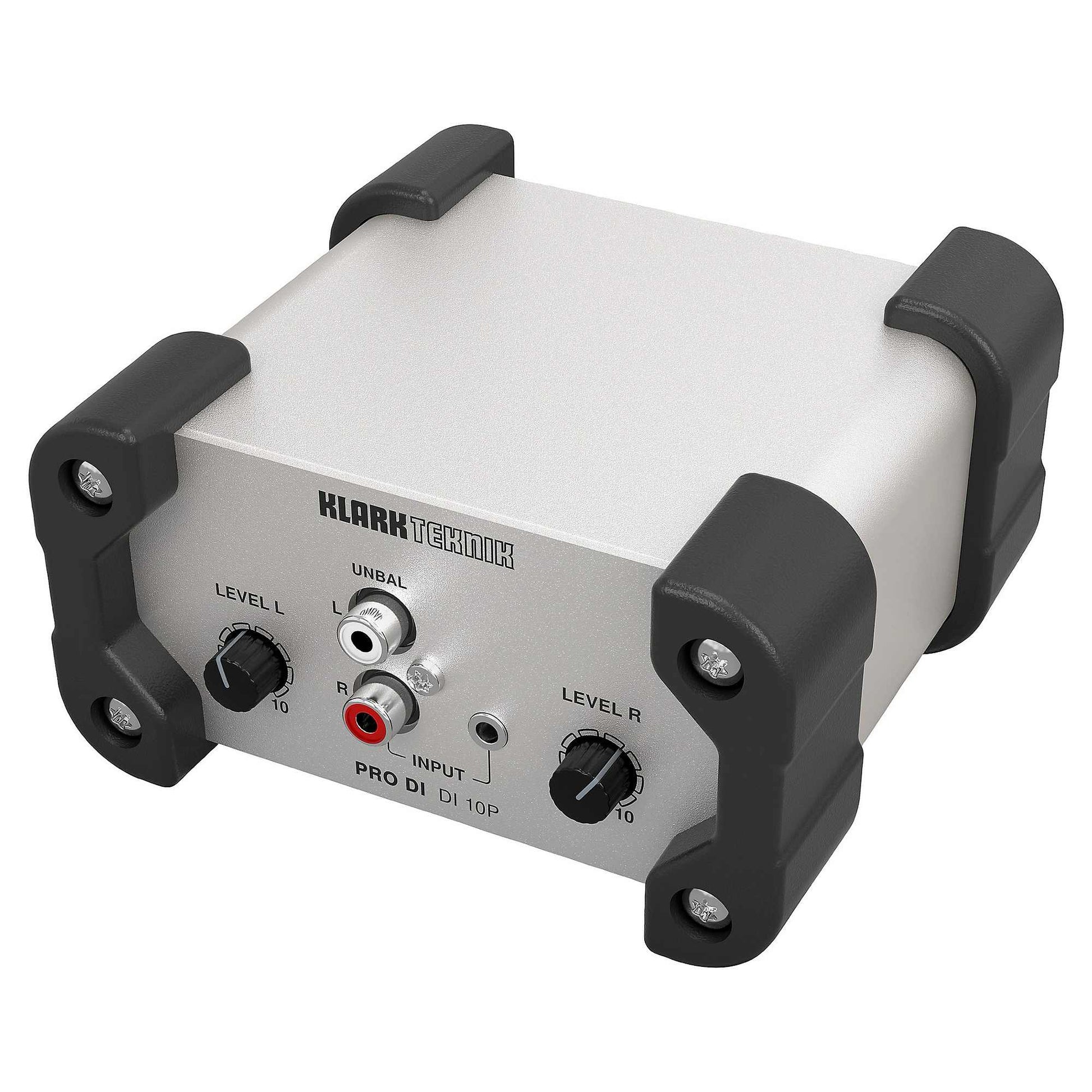

Klark Teknik DI 10P Passive Stereo-to-Mono DI Box

Klark Teknik DI 10P Passive Stereo-to-Mono DI Box

Klark Teknik DI 10P sums a consumer stereo source to mono and feeds a professional mixing console through a balanced XLR output. It suits portable players, computers, and other devices with RCA or 3.5 mm outputs.

Independent left and right level controls let you balance the source before summing. The unused input connector can also serve as a parallel link output.

The passive design requires no power. Ground Lift helps reduce ground-loop noise, while the rugged enclosure is suited to mobile use.

Main Features

• Passive stereo-to-mono DI box.
• Stereo RCA and 3.5 mm TRS inputs.
• Independent left and right level controls.
• Balanced XLR mono output.
• Unused input connector can serve as a parallel link.
• Ground Lift switch.
• No power required.

Technical Specifications

• Inputs: stereo RCA and 1/8-inch TRS, unbalanced
• Input impedance: 7 kΩ
• Output: 1 x balanced XLR
• Output impedance: 170 Ω
• Output level: approximately 20 dB below input
• Frequency response: 10 Hz to 91 kHz, ±1 dB
• THD+N: <0.03%, 1 kHz, +4 dBu
• Signal-to-noise ratio: >120 dB, 1 kHz, +4 dBu
• Power: not required
• Dimensions: 64 x 118 x 112 mm
• Weight: 0.47 kg

What’s Included

• 1 x Klark Teknik DI 10P passive DI box

Who Is It For

Ideal for connecting portable players, computers, video systems, and other stereo sources to a single mono console channel.
