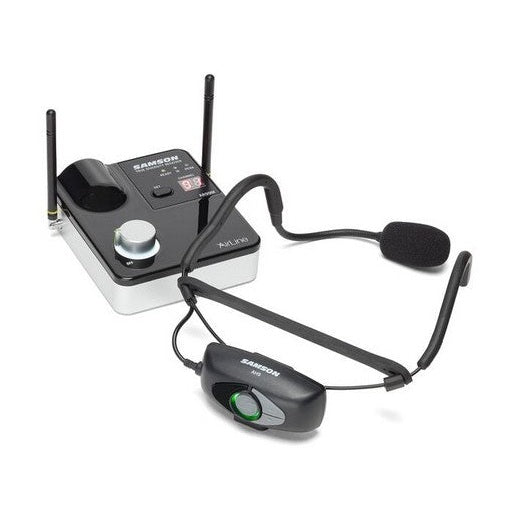

System:
Working Range: 300' (100m) line of sight
Audio Frequency Response: 50 Hz - 15 kHz
T.H.D. (Overall): <1% (@AF 1 kHz, RF 46 dBu)
Dynamic Range: >100 dB A-weighted
Signal to Noise: >95 dB
Operating Temperature: –10°C (14°F) to +60°C (+140°F)
Tone Key Frequency: 35 kHz

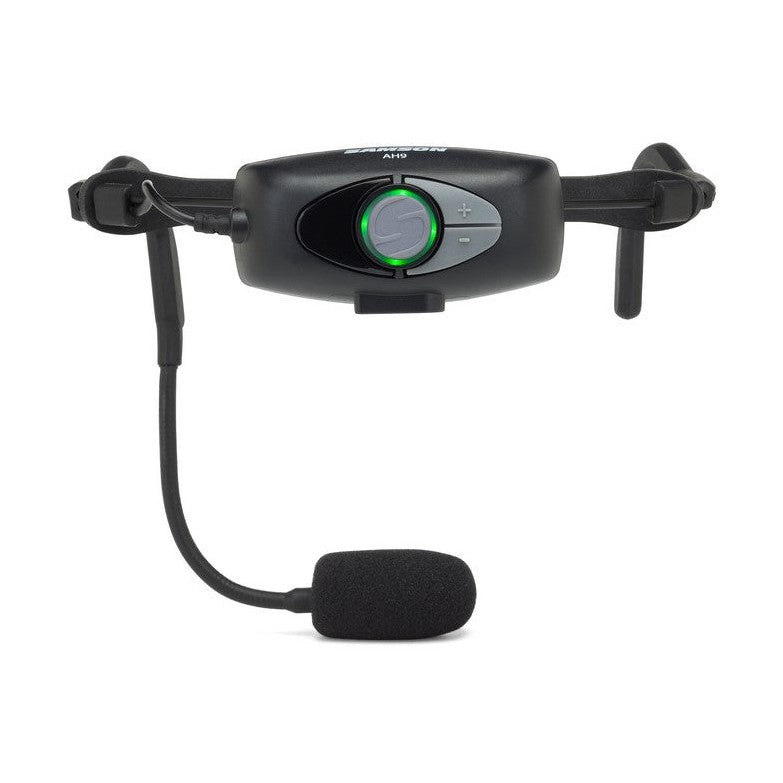

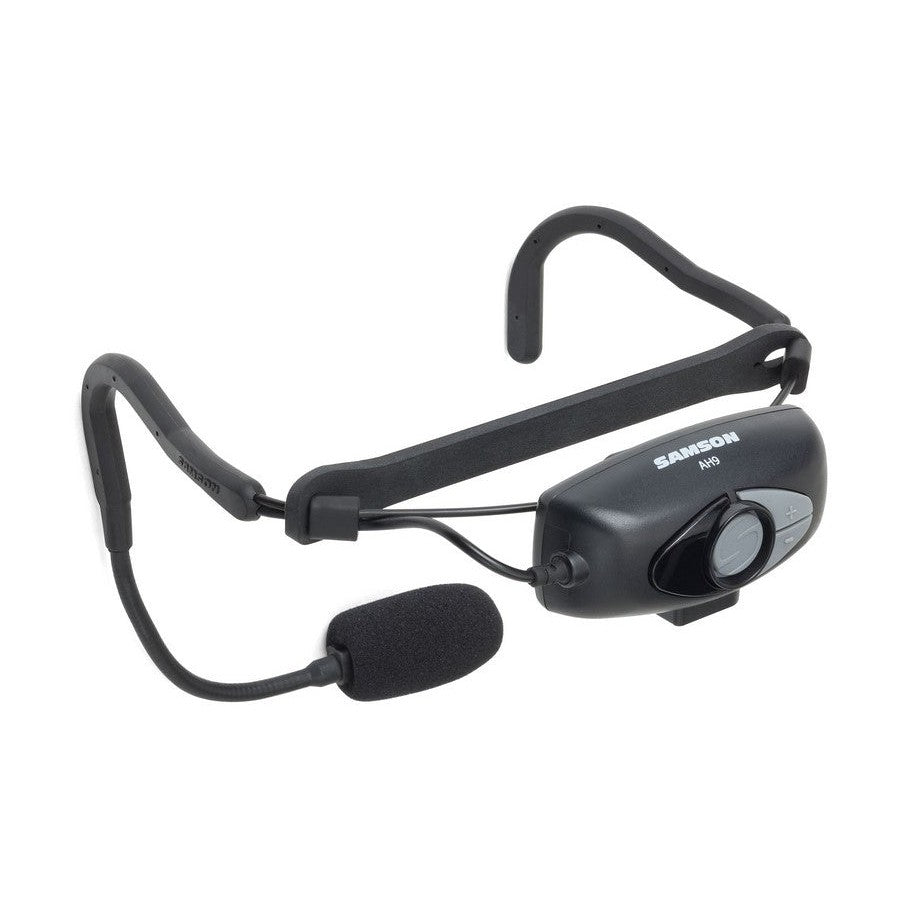

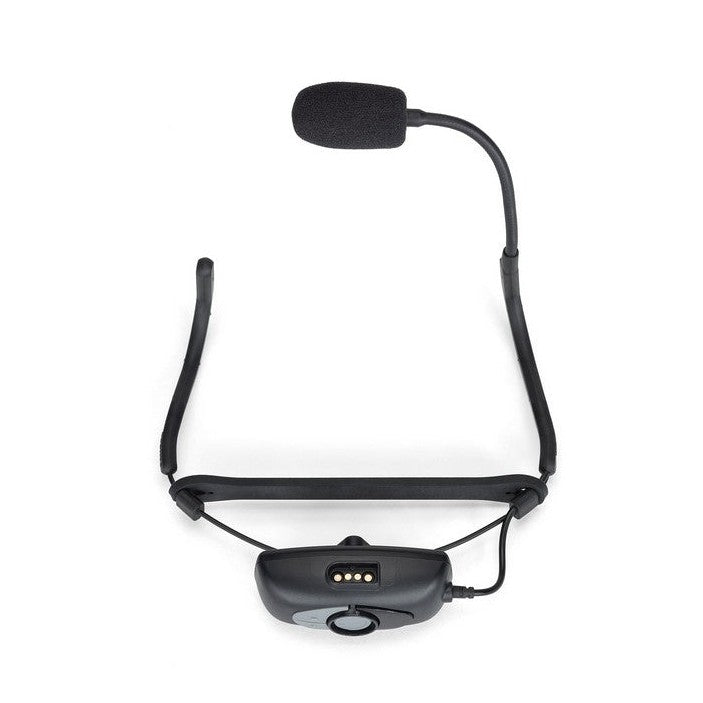

AH9 Transmitter:
Input Gain Range: 20dB
RF Power: 10mW EIRP
Power Requirements: 3.6V 500mAh Lithium Ion rechargeable battery
Battery Life: 8 hours
Dimensions (LxWxH): 5.9” x 6.7” x 3.9” 150mm x 170mm x 100mm
Weight: 0.13lb / 60g

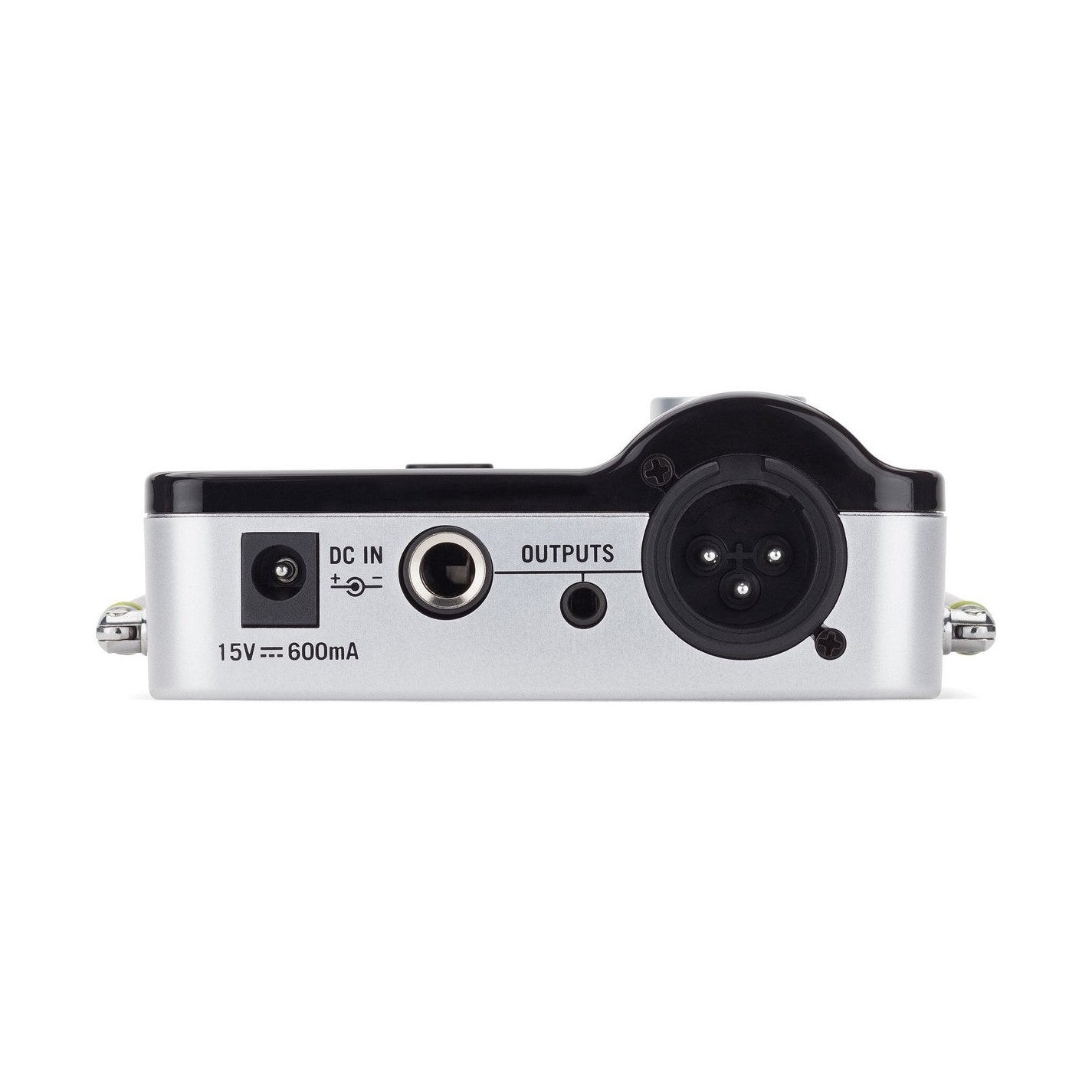

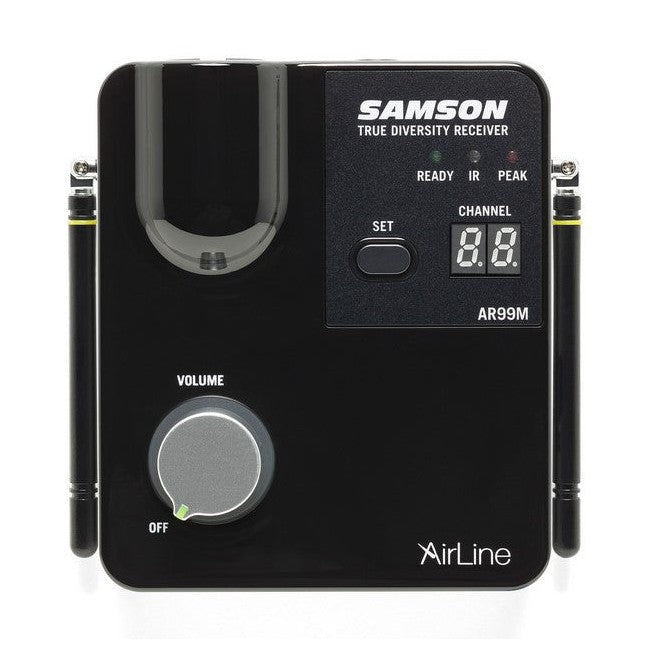

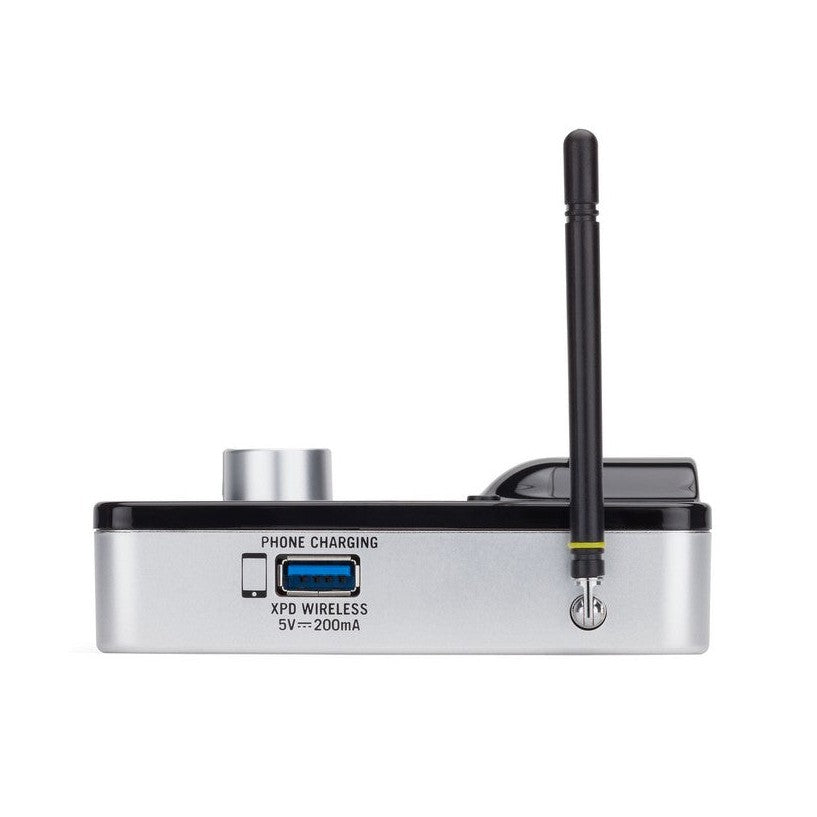

AR99m Receiver:
Audio Output Level
1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced): +14dBu
XLR jack (balanced): +9dBu
Audio Output Impedance
1/8” (3.5mm) & 1/4” (6.3.mm) jack (unbalanced): 810 Ohms,
XLR output jack (balanced): 240 Ohms
Sensitivity: 100dBm/30dB SINAD
Image Rejection: >50dB
Operating Voltage: 15VCC 600mA
Dimensions (LxWxH): 4.3” x 3.74” x 1.5” 110mm x 95mm x 39mm
Weight: 0.42lb / 192g
