DSP:
Sample rate: 48 kHz, 64 bits NXP (Philips) DSP

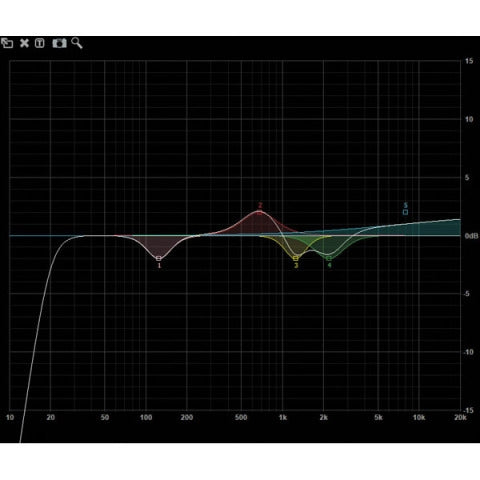

5-Bands Input EQ:
EQ Selections: Allpass, Bell, High Shelf, Low Shelf, Notch
EQ Frequency Selection: 20 to 20,000 Hz in 1 Hz steps on all EQ's

Delay:
Output delay: Channel independent from 0 to 8 mS

5-Bands Output EQ:
EQ Selections: same as input
Type: Low Shelf 6, Low Shelf 12, High Shelf 6 and High Shelf 12

Crossovers:
Types: Linkwitz Riley, Bessel and Butterworth
Slopes: 6, 12, 18, 24 dB/octave
Crossover frequencies: 20 to 20,000 in 1 Hz octave steps

Limiter:
Threshold points: -20 to +20 dBu in 0.5 dB steps
Attack time: Zero Attack Time Limiter
Release times: 1 = shortest, 100 = endless long, in steps of 1.

Miscellaneous:
Memory Storage: 50 User presets
Mute: All Output channels can be individually muted
Display: 2 x 16 dot matrix characters
Latency: 1.27 mS
USB Interface: Back
Power Supply: 6V DC
Power Consumption: 4 Watt
Power Switch: Back
Measurements: 483 x 155 x 44 mm

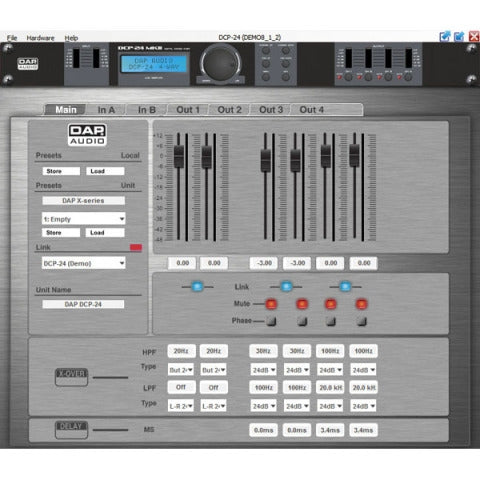

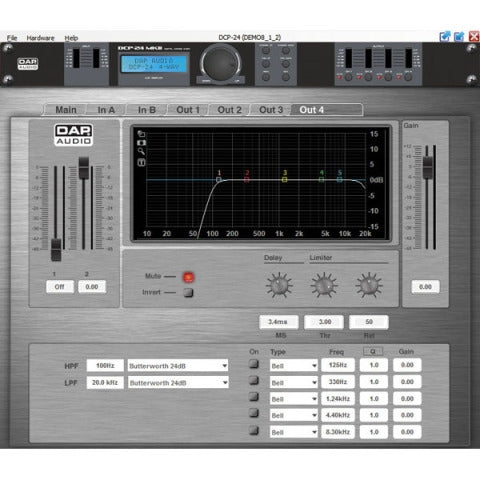

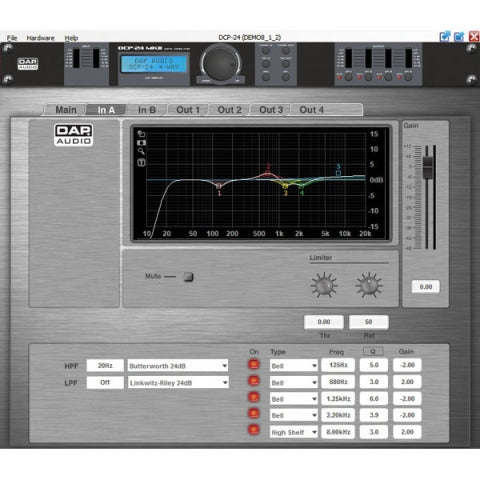

Accessories: Power adapter, USB cable, DSP software
