Frequency Response: 20 Hz – 22 kHz (±1 dB), all inputs
THD+N (Total Harmonic Distortion): < 0.005% (@ 4 dBu, 1 kHz), all inputs
Gain Range: Mic inputs (Channels 1-2): 0 – 50 dB, Line inputs (Channels 1-2): 15 dBu – 35 dBu, Line inputs (Channels 3-6): -20 dBu – +20 dBu
Max Voltage Gain: 70 dB (MIC INPUT to MAIN MIX OUTPUT), 80 dB (MIC INPUT to CTRL ROOM / PHONES OUPTUT), 60 dB (MIC INPUT to MON SEND)
SNR (Signal-to-Noise ratio): > 110 dBu, all inputs
Crossover Frequency: Adjacent inputs: < -80 dB @ 1 kHz, Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-2, panned hard left or right)
Phantom Power: +45 ~ +49V with switch control
Impedance: Mic inputs: 3.9 kΩ, All other inputs: > 10 kΩ, Aux outputs: 1 kΩ, All outputs: 120 Ω
Equalization: High: ±15 dB @ 12 kHz, Low: ±15 dB @ 80 Hz
Bluetooth: Profile: A2DP, Module: Bluetooth 5.0, Operating Frequency: 2402 MHz – 2480 MH, Range: 30.5 m
Connectors: (6) 1/4” (6.35 mm) TRS outputs. (6) 1/4” (6.35 mm) TRS stereo L/R inputs, (4) 1/4" (6.35 mm) TRS headphone outputs, (4) 1/4" (6.35 mm) TRS mono inputs, (1) Standard RCA L/R input, (1) Standard RCA L/R output, (4) XLR inputs, (1) USB type-B input, (1) DC power input

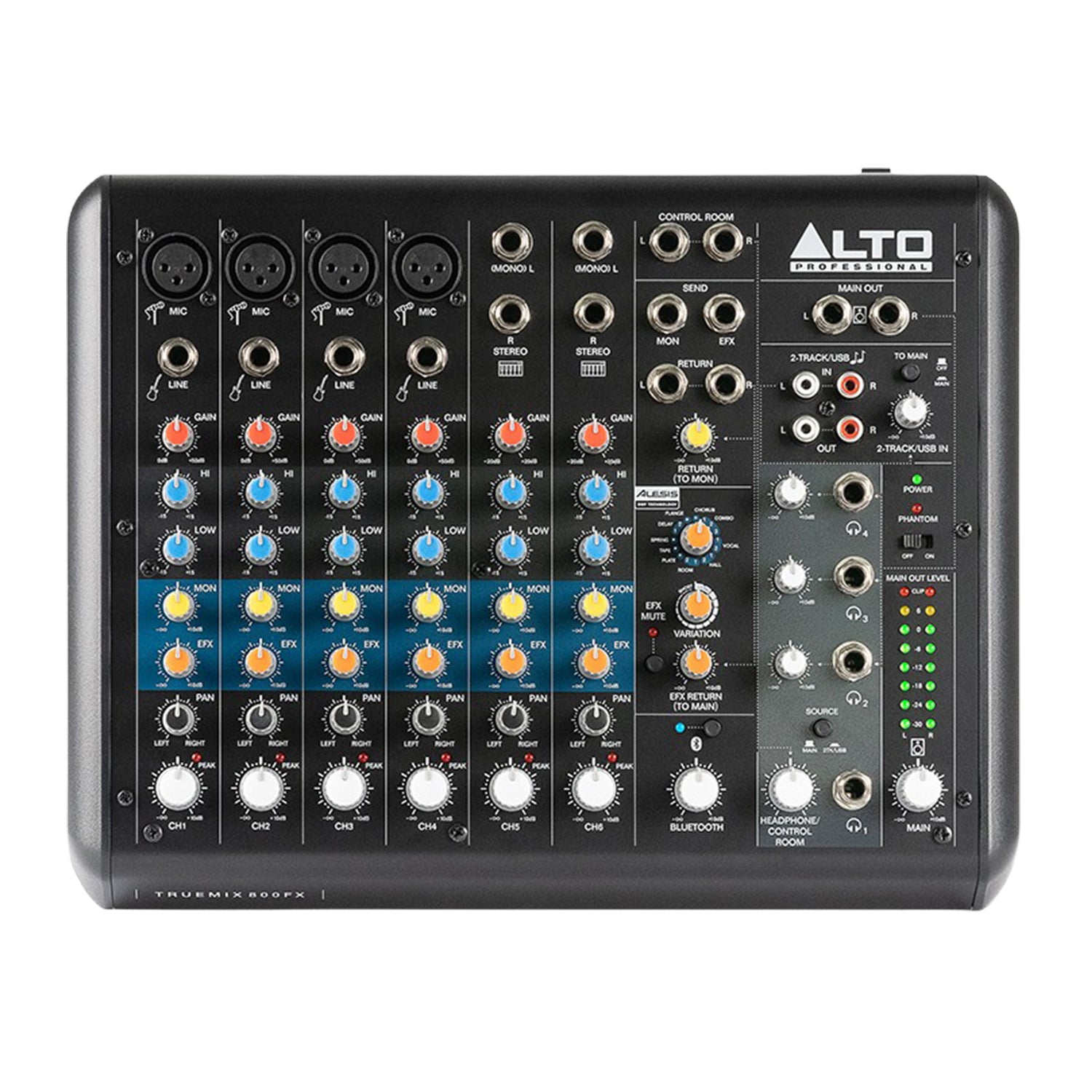

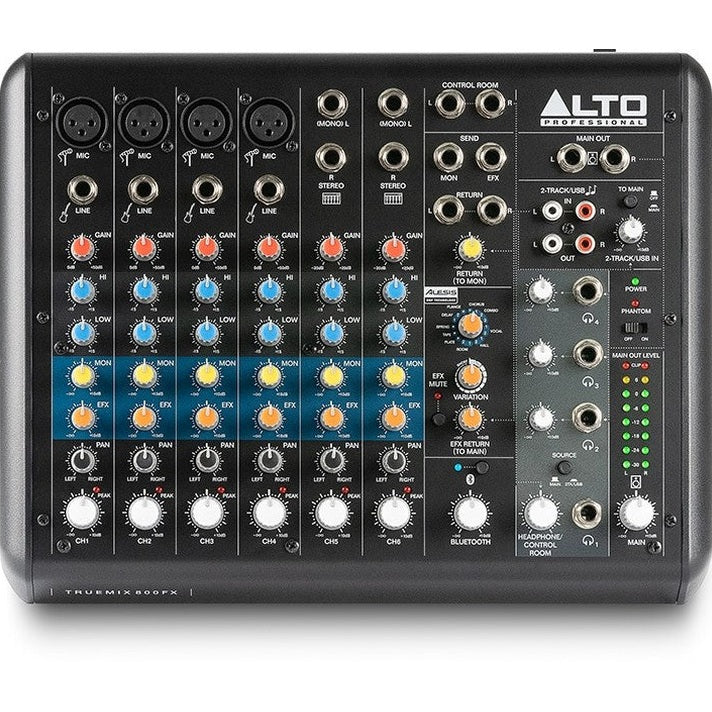

Controls: (1) Power switch, (15) volume control knobs (1 per input, 1 return, 1 EFX return, 1 2-track/USB in, 4 headphone outs, 1 Bluetooth, 1 main), (6) Stereo pan control knobs (1 per input), (6) Mon volume control knobs (1 per input), (6) EQ Low control knobs (1 per input), (6) EQ Hi control knobs (1 per input), (6) Gain control knobs (1 per input), (4) Buttons (1-EFX mute, 1 Bluetooth, 2 Source Select), (1) Horizontal sliding switch
Indicators: (1) Power LED, (6) Peak LEDs, (1) Phantom LED, (16) Main Out Meter LEDs, (1) Bluetooth LED

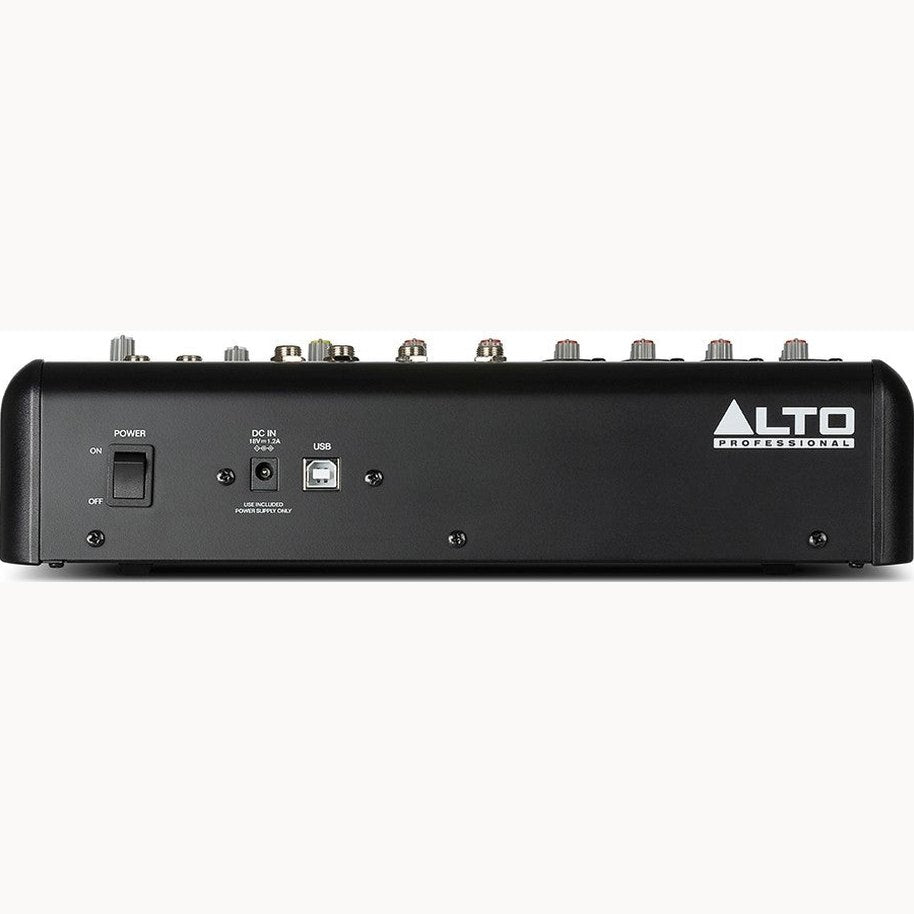

Power: DC Connection, Voltage: 18V, 1.2A, 18W comsumption
Dimensions (width x depth x height): 305 x 238.5 x 79 mm
Weight: 2.04 kg
