Frequency Response: 20 Hz – 22 kHz (±1 dB), all inputs
THD+N (Total Harmonic Distortion): < 0.005% (@ 4 dBu, 1 kHz), all inputs
Gain Range: Mic inputs (Channel 1): 0 – 44 dB, Line input (Channel 1): 12 – 30 dBu, Line inputs (Channels 2/3): 0 dBu
Max Voltage Gain: 74 dB (Mic Input to Main Out and 2TK Output), 80 dB (Mic Input to Phones Output), 30 dB (Line Input to Main Out)
SNR (Signal-to-Noise ratio): > 110 dBu, all inputs
Impedance: Mic inputs: 3.9 kΩ, All other inputs: > 10 kΩ, 2TK output: 1 kΩ, All other outputs: 120 Ω
Crosstalk: < -80 dB @ 1 kHz (Adjacent inputs), Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channel 1, panned hard left or right)
Equalization: High: ±15 dB @ 12 kHz, Low: ±15 dB @ 80 Hz

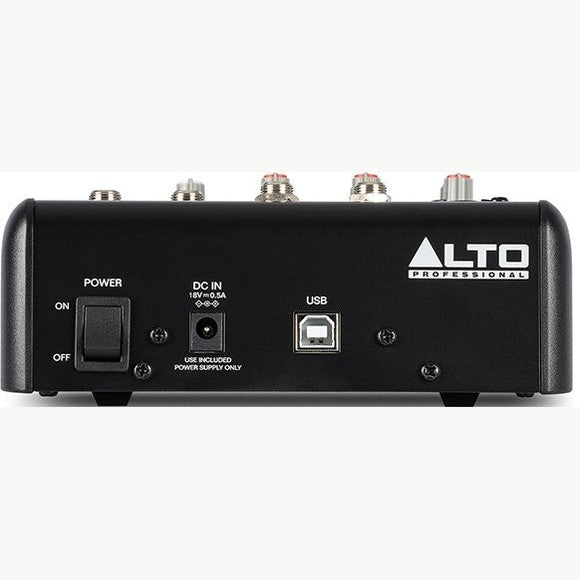

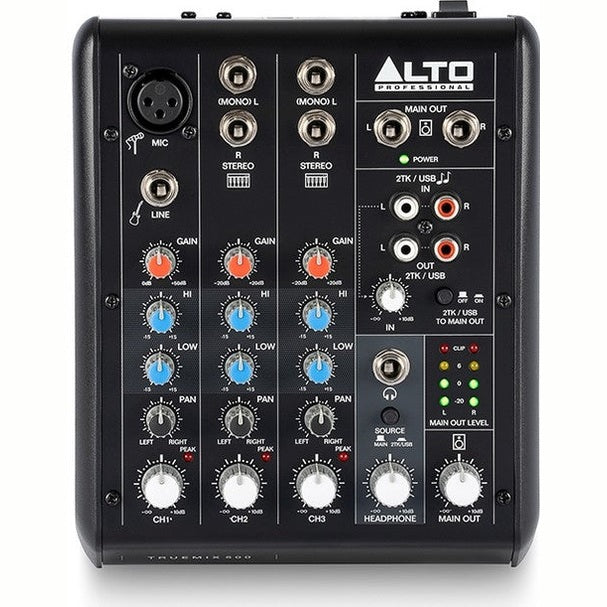

Connectors: (2) 1/4” (6.35 mm) TRS outputs, (2) 1/4” (6.35 mm) TRS stereo L/R inputs, (1) 1/4" (6.35 mm) TRS headphone output, (1) 1/4" (6.35 mm) TRS mono input, (1) XLR input, (1) Stereo RCA L/R input, (1) Stereo RCA L/R output, (1) USB type-B input, (1) DC power input

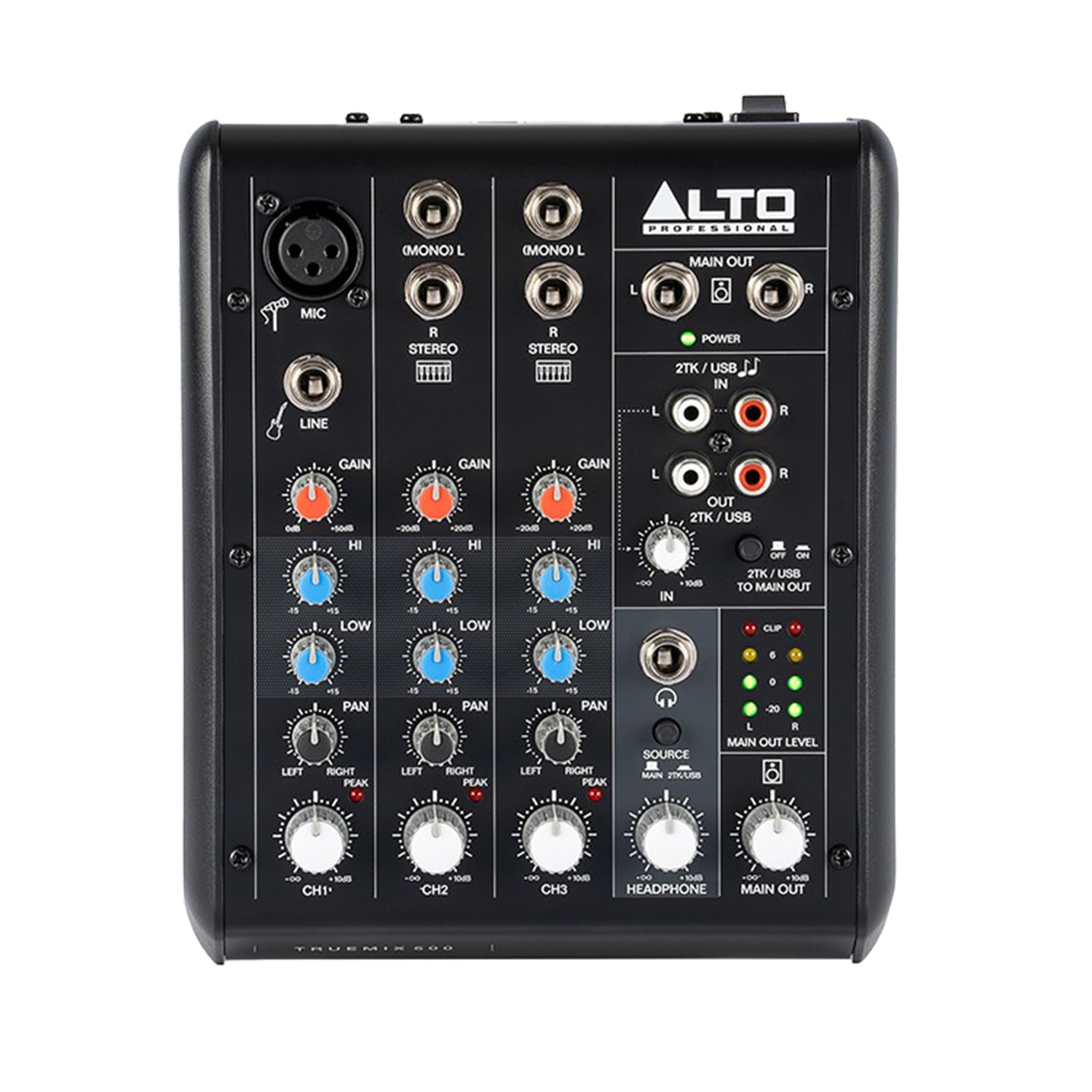

Controls: (1) Power switch, (6) Volume control knobs (1 per input and output), (3) Gain control knobs (1 per channel), (3) EQ Hi control knobs (1 per channel), (3) EQ Low control knobs (1 per channel), (3) Stereo pan control Knobs (1 per channel), (2) Locking switch buttons
Indicators: (1) Power LED, (3) Peak LEDs, (8) Main Out meter LEDs
Main Mix: Main output: (2) 1/4" (6.35 mm) balanced TRS, +22 dBu max output, 2TK output: (2) unbalanced RCA, 0 dBu max output, Headphone output: (1) stereo 1/4" (6.35 mm) TRS, 160 mW @ 32 Ω

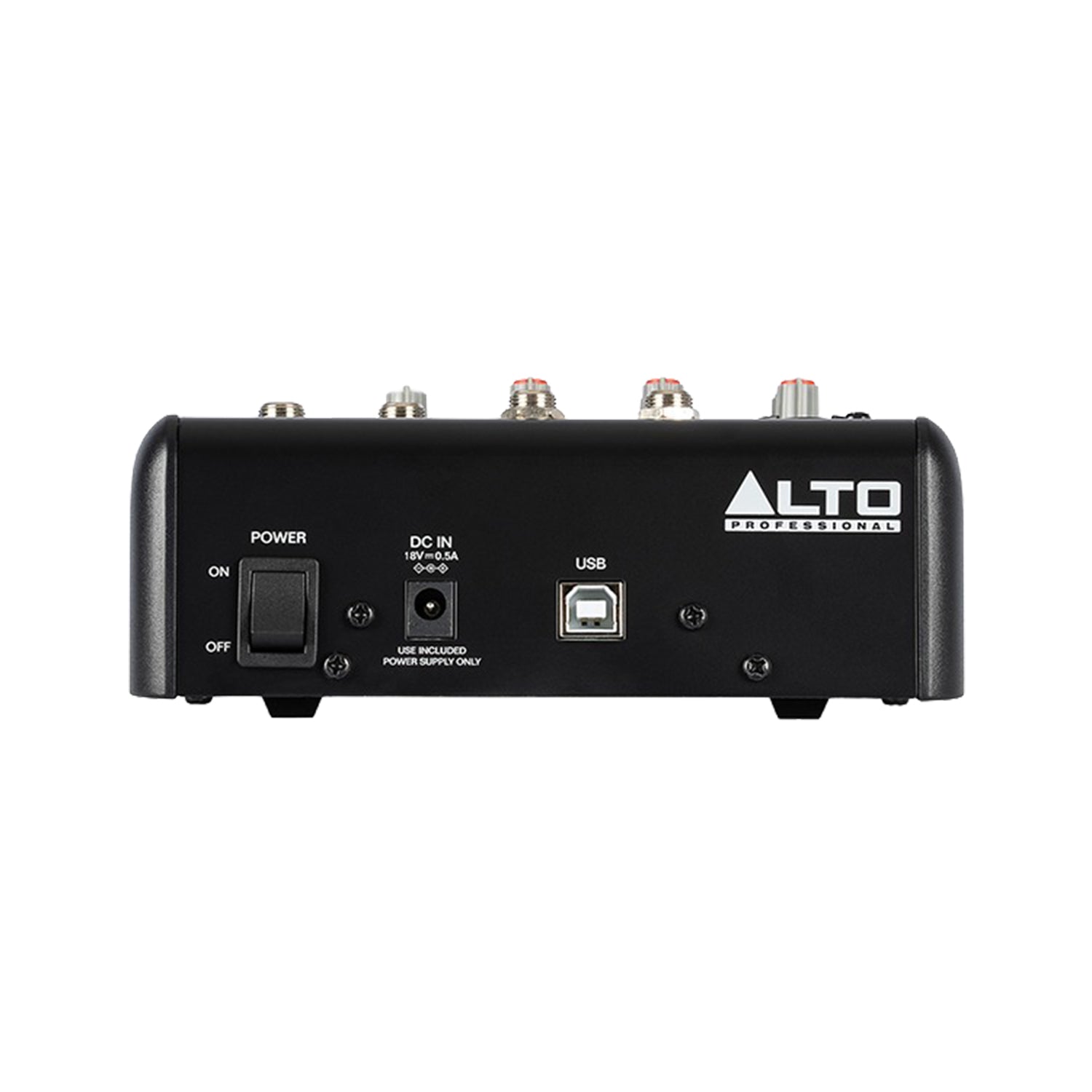

Power: DC connection, 18V, 500 mA, 9 W consumption
Dimensions (width x depth x height): 159.5 mm x 193 mm x 66 mm
Weight: 0.9 kg
